Yuma YM714 Door Closer 60–90 kg No:4

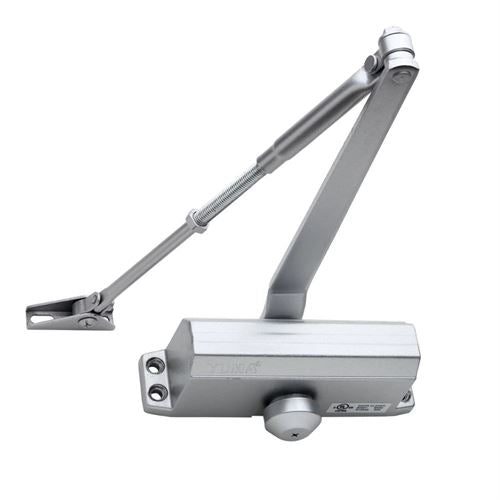

Yuma YM714 Door Closer (60–90 kg / No:4)

The Yuma YM714 Door Closer (60–90 kg / No:4) is a robust automatic door closing mechanism designed for heavy-duty doors and high-traffic entrances. Its No:4 power class indicates that the closer is ideally suited to control door weights between 60 kg and 90 kg, and will provide the most efficient performance for doors within this weight range. This product ensures stable closing, especially for heavy doors exposed to external factors (wind, air pressure) that need to remain continuously closed.

Product Features and Material Details

The YM714 model is designed to provide high performance, reliability, and durability:

Mechanism Type: Door Closer (Heavy-Duty Door Closer).

Function: After the door is opened, the hydraulic fluid and strong spring system inside ensure the door closes in a controlled, stable, and reliable manner.

Power Standard: Conforms to EN 1154 Standard (No:4).

Load Capacity: Ideally suited for heavy door weights between 60 kg and 90 kg.

Door Width: Typically capable of controlling wide doors between 950 mm and 1100 mm. Guarantees strong closing for heavy and/or wide doors.

Speed Adjustment: Dual Speed Adjustment (Adjustable Closing Speed).

The closing speed can be precisely adjusted in two separate stages using the valves on the hydraulic body:

Main Closing Speed: The speed of the door from its initial open position to its final closing angle.

Latching Speed (Snapping Speed): Allows the door to accelerate or decelerate in the last 10-15 degrees of its closing arc. This is critical for the door to engage the lock fully and quietly.

Material:

Body: High-strength aluminum alloy or heavy-duty cast iron (with corrosion-protective coating).

Arms and Connection Parts: High-stress resistant reinforced steel or alloys.

Internal Structure: High-quality hydraulic oil and leak-proof seals for long life and stable performance.

Areas of Use and Applications

The Yuma YM714 No:4 Door Closer is used in high-traffic areas where power and reliability are prioritized:

Main Entrances of Commercial Buildings: Heavy aluminum or wooden external doors of office buildings, universities, hospitals, hotels, and shopping malls.

Fire Doors: To ensure heavy fire-rated doors close automatically (relevant certifications must be checked).

High-Traffic Areas: Heavy-duty factory and warehouse doors that are constantly opening and closing.

Outdoor Doors: In locations where external factors like wind or air pressure affect door closing.

User Information and Sectors of Use

User Information (Who Uses It?)

This product is aimed at professionals who demand strong and stable closing performance for heavy doors or in windy environments:

Facility and Building Managers: Those responsible for access control in large-scale commercial or institutional buildings.

Construction Contractors: Those installing heavy and wide doors in their projects that need to meet international standards (EN 1154).

Security and Fire System Installers: Those implementing fire or security systems that require doors to remain closed at all times.

Primary Sectors of Use

It is an essential component in all sectors with heavy doors and high traffic:

Commercial Real Estate and Office Buildings: Heavy entrance doors.

Healthcare and Education: Main entrance doors of hospitals and schools.

Industry and Manufacturing: Heavy internal partition and emergency exit doors within facilities.

The Yuma YM714 Door Closer, with its No:4 power (60-90 kg), is an important piece of equipment that enhances safety and comfort standards in buildings by ensuring heavy doors close in a controlled, reliable manner, even under challenging environmental conditions.
