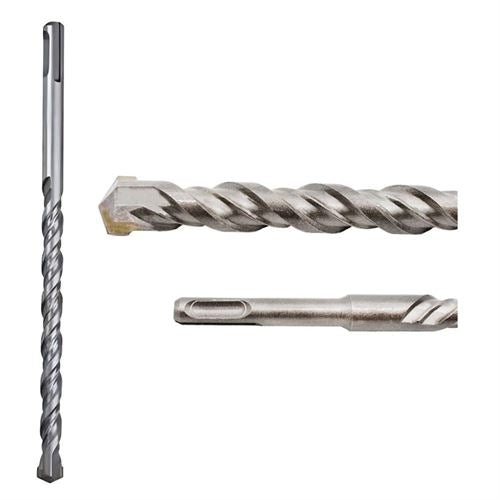

Tomax SDS Plus Concrete Drill Bit 10x210 mm

Tomax SDS Plus Concrete Drill Bit 10x210 mm:

High Performance at Maximum Depth

The Tomax Sds Plus Concrete Drill Bit 10x210 is 50 mm (5 cm) longer than the 10x160 model, allowing for deeper drilling capacity. Designed for heavy-duty drilling tasks, this 10x210 mm SDS Plus Concrete Drill Bit provides professional users with the ability to create deep and precise holes. Its length makes it ideal for deep anchors in thick walls and structural elements.

Product Features and Technical Details

Size and Structure

Diameter: 10 mm

Overall Length: 210 mm

Usable Length: Capable of drilling up to 160 mm.

Shank Type: SDS Plus. This standard is designed for rotary hammer drills with a hammering mechanism. It locks the bit into the chuck, efficiently transfers impact force, and allows for quick bit changes.

Material Properties and Tip Structure

Body Material: High-strength alloy steel. This steel is specially heat-treated for excellent durability against high impact energy and bending stresses during drilling.

Cutting Tip (Carbide Tip): Diamond, with superior hardness and wear resistance, is used on the drilling surface of the tip to effectively drill through the toughest materials.

Tip Design: Features a 2-diamond, 2-flute grooved design.

Flute Design: Thanks to the optimized spiral flute structure, it quickly and efficiently expels dust and debris from the drilled material. This reduces friction and heat, allowing for faster drilling and longer bit life.

Areas of Use and User Information

Primary Areas of Use

The Tomax 10x210 mm SDS Plus drill bit is designed specifically for deep mounting and installation applications.

Deep Dowel and Chemical Anchor Applications: The 10 mm diameter is ideal for creating pilot holes for medium-to-heavy load-bearing anchors and especially for common dowel sizes like M9 or M10.

Mechanical Installations: Drilling deep holes for passing pipelines or ventilation ducts through thick walls.

Electrical and Cabling: Drilling deep tunnel holes for passing cables or conduits through thick structural elements.

Suitable Materials for Drilling

When used with SDS Plus hammer drills, this drill bit provides excellent results in the following hard construction materials:

Concrete (Reinforced or unreinforced)

Hard Natural Stone (Granite, basalt, etc.)

Brick and High-Density Walls

Usage Tips

Correct Machine: Use only with SDS Plus chuck rotary hammer drills.

Impact Mode: When drilling in concrete, stone, and hard brick, use the machine in hammer drilling mode.

Dust Extraction: To facilitate dust extraction in deep holes and cool the bit, intermittently pause and "pump" the drill.

Beware of Overheating: To reduce excessive heat that can occur due to length and to extend bit life, avoid continuous and forced operation.

Sectors of Use

The Tomax SDS Plus 10x210 mm drill bit is preferred in the following professional sectors due to its long reach and robust construction:

This drill bit guarantees reliability, speed, and precision for your demanding and deep drilling requirements.
