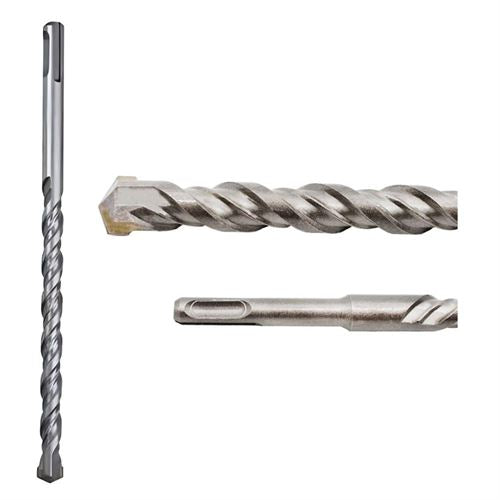

Tomax SDS Plus Concrete Drill Bit 10x160 mm

Tomax SDS Plus Concrete Drill Bit 10x160 mm:

High Performance at Maximum Depth

The Tomax SDS Plus Concrete Drill Bit, measuring 10x160 mm, is designed for heavy-duty drilling tasks, enabling professional users to create deep and precise holes. Its length makes it ideal for deep anchor applications in thick walls and structural elements.

Product Features and Technical Details

Size and Structure

Diameter : 10 mm

Overall Length: 160 mm

Usable Length: Capable of drilling up to 110 mm.

Shank Type: SDS Plus. This standard is designed for rotary hammer drills with an impact mechanism. It locks the bit into the chuck, efficiently transfers impact force, and allows for quick bit changes.

Material Properties and Tip Structure

Body Material: High-strength alloy steel. This steel is specially heat-treated for excellent resistance to high impact energy and bending stresses during drilling.

Cutting Tip (Carbide Tip): Diamond is used on the drilling surface of the tip for superior hardness and wear resistance to effectively drill through the toughest materials.

Tip Design: Features a 2-diamond, 2-flute grooved design.

Flute Design: The optimized spiral flute design quickly and efficiently expels dust and debris from the drilled material. This reduces friction and heat, leading to faster drilling and longer bit life.

Areas of Use and User Information

Primary Areas of Use

The Tomax 10x160 mm SDS Plus drill bit is specifically designed for deep installation and plumbing applications.

Sector	Application Areas
Construction	Facade installations, steel construction, and deep anchoring.
Mechanical & Plumbing	Thick wall penetrations for heating, ventilation, and water pipelines.
Electrical Installation	Mounting points for distribution panels and heavy-duty cable trays.
Formwork and Structural Reinforcement	Deep holes for the installation of structural reinforcement elements.

Deep Anchor and Chemical Anchoring Applications: Its 10 mm diameter is ideal for drilling pilot holes for medium-heavy load-bearing anchors, especially common anchor sizes like M9 or M10.

Mechanical Installations: Drilling deep holes to pass pipelines or ventilation ducts through thick walls.

Electrical and Cabling: Creating deep tunnel holes to run cables or conduit through thick structural elements.

Suitable Materials for Drilling

When used with SDS Plus hammer drills, this drill bit provides excellent results in the following hard construction materials:

Concrete (Reinforced or unreinforced)

Hard Natural Stone (Granite, basalt, etc.)

Brick and High-Density Walls

Usage Tips

Correct Machine: Use only with SDS Plus chuck rotary hammer drills.

Impact Mode: Use the machine in hammer drilling mode when drilling in concrete, stone, and hard brick.

Dust Extraction: To facilitate dust removal in deep holes and cool the bit, pause the drilling process occasionally (by "pumping") rather than continuous drilling.

Beware of Overheating: To reduce excessive heat buildup due to length and extend bit life, avoid continuous and forced operation.

Sectors Used In

Thanks to its long reach and robust construction, the Tomax SDS Plus 10x160 mm drill bit is preferred in the following professional sectors:

This drill bit guarantees reliability, speed, and precision for your demanding and deep drilling requirements.
