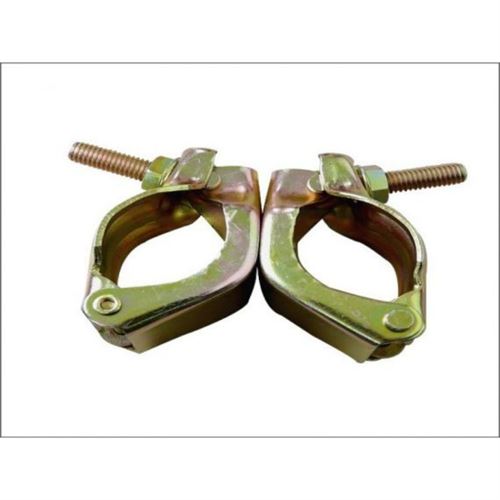

Selçuk Scaffolding Double Coupler

Selçuk Scaffolding Double Coupler:

The Essential Connecting Element for Safety

It is one of the fundamental connecting elements of tubular scaffolding systems used in the construction industry. This coupler plays a critical role in ensuring the structural integrity and occupational safety of the scaffolding system by connecting scaffold tubes securely, robustly, and in compliance with regulations.

As the name "Double Coupler" suggests, it has the ability to clamp and secure two scaffold tubes simultaneously at a single connection point.

Material Properties and Technical Details

The Selçuk Scaffolding Double Coupler is manufactured to withstand harsh construction site conditions and high loads.

Material Structure: Couplers are generally made from Forged Steel or Spheroidal Graphite Cast Iron material.

Forged Steel: Provides high strength and impact resistance, making it the safest and longest-lasting coupler type.

Spheroidal Graphite Cast Iron: A cost-effective alternative with high load-bearing capacity.

Surface Coating: To increase resistance to corrosion and ensure long-lasting use, it is typically coated with Hot-Dip Galvanization or Electro Galvanization. Galvanizing increases the coupler's resistance to external environmental conditions (rain, humidity, snow).

Standards: Products from quality manufacturers are produced in compliance with international and national safety standards such as TS EN 74-1 and typically have CE certification. This indicates that the product provides a secure connection under high load.

Compatible Tube Diameter: Designed to be fully compatible with Ø48.3 mm (48 mm) diameter tubes, which are standard in the scaffolding industry.

Types of Double Couplers

Double couplers are divided into two main types according to their intended use:

Fixed Double Coupler: Connects two tubes only at a perfect right angle (90°). Used to form the main load-bearing frame of the scaffolding system.

Swivel Double Coupler: Can connect two tubes at any angle between 0° and 180°. Provides flexibility for diagonal bracing, inclined supports, and non-standard angled connections.

Areas of Use and Critical Functions

The primary task of the double coupler is to ensure the stability and safety of the scaffolding system.

Function	Purpose of Use
Forming the Main Frame	Fixed double couplers connect vertical (standard) tubes and horizontal (ledger) tubes at a perfect 90-degree angle, establishing the main load-bearing structure of the scaffold.
Diagonal Bracing Connection	Diagonal (bracing) tubes are added to the scaffolding system using swivel double couplers. These diagonals increase the scaffold's resistance to lateral wind and seismic loads.
Module Connection	Connects two separate scaffold modules built side-by-side to create a cohesive and single platform.
Additional Supports	Ensures the secure connection of cantilever tubes, stair towers, or additional working platforms to the main scaffold structure.

Sectors Used and Target Audience

The double coupler is an indispensable connecting element wherever tubular scaffolding systems are used.

Sector	Area of Use	Target Audience
Construction and Building	Facade scaffolding, formwork support scaffolding, exterior work on all types of high-rise buildings.
Industrial Facilities	Temporary platforms for maintenance, repair, and painting work in refineries, power plants, factories, and shipbuilding yards.	Industrial Facility Maintenance Teams.
Organization and Events	Erection of structures such as concert stages, grandstands, and temporary lighting towers.	Event and Organization Companies.
Renovation and Restoration	Facade restoration and renovation of historical buildings.	Restoration Companies.

User Information and Advantages

High Safety: Double couplers have a higher load capacity than single couplers (typically resistant to pressure in the range of 600 kgf - 1000 kgf) and provide maximum safety.

Easy Assembly/Disassembly: Quickly assembled and disassembled by tightening the nuts with a wrench. This reduces labor time and costs.

Reusability: Made of forged steel or galvanized cast iron, they can be repeatedly assembled and disassembled for use in different projects for many years.

The Selçuk Scaffolding Double Coupler is a vital connecting element preferred by professionals seeking a fast and robust scaffolding solution without compromising occupational safety on construction sites.

Would you like to know more about the maintenance or assembly of these couplers?
