Scheppach HM140L Laser Sliding Mitre Saw 305 mm 2000 Watt

Scheppach HM140L Laser Sliding Miter Saw 305 mm 2000 Watt

Scheppach HM140L: The Pinnacle of Power and Precision with 330 mm Width and 105 mm Height

The Scheppach HM140L Laser Sliding Miter Saw is a miter saw designed for professionals seeking the highest level of precision, even on heavy and large materials. Its powerful 2000 Watt motor, combined with a Ø 305 mm saw blade, offers an exceptional cutting capacity. This machine particularly stands out with its impressive cutting volume of 330 mm width and 105 mm height at 90°/90°.

The HM140L is ideal for precise angular cuts of wood, plastic, and similar materials. Its turntable, rotatable from -45° to +45°, and double-sided (left and right) 45° bevel feature provide unique flexibility for complex compound angle cuts. The integrated laser, which highlights the cutting line, and the LED light, which illuminates the work area, offer the user maximum precision and clarity of vision. Its compact structure and lightweight die-cast aluminum body ensure easy portability despite its net weight of 20.5 kg.

Product Features and Technical Details

Feature	Detail
Product Name	Scheppach HM140L Laser Sliding Miter Saw
Motor Power	2000 Watt (230 V~ 50 Hz)
Saw Blade Diameter / Bore	Ø 305 mm / Ø 30 mm
Teeth Options	24 teeth / 48 teeth (For different cutting qualities)
Cutting Capacity (90°/90°)	330 mm x 105 mm (Width x Height)
Max. Cutting Width	330 mm
Max. Cutting Height	105 mm
Miter Angle (Rotary Table)	-45° to +45°
Bevel Angle (Saw Head)	Double-Sided 45° (Left and Right)
Precision Systems	Integrated Laser and LED Light
Body Structure	Lightweight Die-cast Aluminum and Sliding
Dimensions (L x W x H)	865 x 535 x 520 mm
Net / Gross Weight	20.5 / 25.3 kg

Areas of Use and Industries

The HM140L is an ideal machine for professional applications that work with both wide and thick materials and require the highest precision.

Industries

Construction and Rough Carpentry: Cutting thick timber, columns, posts, and structural wood materials thanks to its 105 mm cutting height.

Cabinetmaking and Furniture Manufacturing: Perfect miter cuts for large table tops, thick furniture legs, door frames, ceiling moldings, and thick panels.

Decoration and Interior Design: Installation and joining of wide floor coverings (parquet, laminate), ceiling cornices, and thick skirting boards.

Stage and Exhibition Stand Construction: Fast and accurate cutting of large and thick wooden frames and decorative profiles for special projects.

Applications

Versatile Cutting Capacity: With a capacity of 330 mm width and 105 mm height, it offers the ability to easily cut even the largest pieces that most standard saws on the market struggle with, in a single pass.

Compound Angle Cutting: Both the -45°/+45° miter angle and the double-sided 45° bevel angle adjustment ensure seamless joining of complex angled profiles like ceiling crown moldings.

Precision and Clarity of Vision: Integrated laser marking clearly shows the cutting line, while the LED light illuminates the work area even in dark or dim environments, providing the necessary visibility for precise cuts.

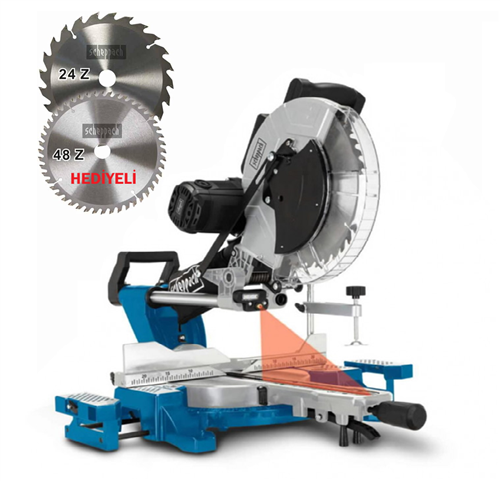

Material Versatility: Thanks to the 24-tooth and 48-tooth blade options, it adapts instantly to different surface quality requirements, from rough cuts (24 teeth) to veneered and delicate surface cuts (48 teeth).

About the Product

HM140L: Elevate Your Projects with 105 mm Cutting Height

Best in Class: 105 mm Cutting Height

The Scheppach HM140L offers a remarkable cutting height capacity among miter saws. This 105 mm depth is revolutionary, especially in areas where standard saws are insufficient, such as structural woodworking, thick timber cuts, and large door frames. This allows operations that previously required additional tools like table saws or circular saws to be completed with high precision using a single machine.

Complete Control with Double-Sided Bevel and Sliding Mechanism

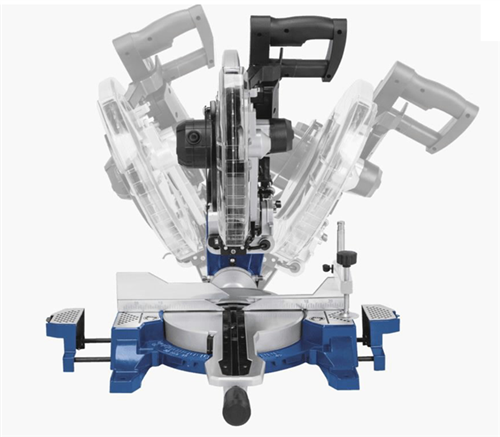

One of the biggest advantages of the HM140L is that the saw head can bevel 45° on both sides. This feature allows for left and right cuts at the same angle without having to turn the workpiece. This saves time and increases cutting precision. The sliding mechanism offers an impressive width of 330 mm, allowing for easy cutting of wide panels and boards.

Modern features such as the integrated laser and LED lighting offer superior control to the user even in challenging environments. The machine's lightweight die-cast aluminum body ensures its portability despite its high power. These features make the Scheppach HM140L an ideal, powerful, and reliable solution for professionals working in both fixed workshops and construction site conditions.

In Summary: The Scheppach HM140L, with its 2000W motor power, 330 mm width and 105 mm height cutting capacity, double-sided 45° bevel, laser and LED lighting, is a high-capacity miter saw designed for professional-level, versatile, and precise cutting of the widest and thickest wood/plastic materials in the construction, carpentry, and decoration industries.
