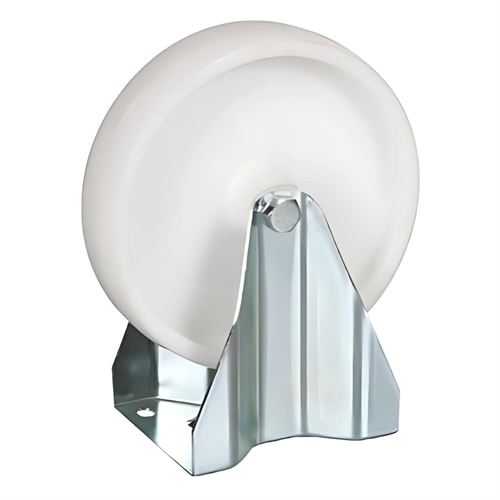

Mertsan Load Bearing Service Wheel Polyamide Fixed Type 150x45 mm

Mertsan Heavy Duty Service Wheel Polyamide Fixed Type 150x45 mm

Maximum Strength and Robust Straight-Line Movement for the Heaviest Loads

The Mertsan Heavy Duty Service Wheel Polyamide Fixed Type 150x45 mm is a wheel solution designed for moving very heavy loads in a straight line in industrial environments, offering the highest strength and high chemical resistance. Thanks to the hardness of polyamide (nylon) material, it offers one of the highest load capacities compared to rubber wheels, with extremely low rolling resistance. Its 150 mm diameter allows it to easily overcome obstacles on the ground, while its 45 mm width and fixed (non-swivel) housing structure guarantee excellent directional control and stability even over long distances and under heavy loads.

Product Features and Material Details

This wheel is designed to withstand harsh industrial conditions due to its large size and the hardness of Polyamide material.

Feature Name	Detailed Description
Wheel Diameter	150 mm (Ideal for overcoming high obstacles and high-speed transport)
Wheel Width	45 mm (High stability and heavy load distribution)
Wheel Material	Polyamide (PA, Nylon): Hard, abrasion-resistant and impact-resistant thermoplastic. Excellent resistance to oil, acid, solvent, and moisture. Has the lowest rolling resistance.
Housing (Fork) Type	Fixed (Non-Swivel): The wheel angle is fixed. Ensures that the transport vehicle moves fast, without deviation, and with control on long straight lines.
Housing Material	Pressed Steel (Zinc-Plated Steel): Thick electro-galvanized coating to increase resistance against rust and corrosion.
Bearing Type	Typically Ball Bearing or Roller Bearing structure; this allows even the heaviest loads to move easily with minimum friction.
Nominal Load Capacity	Very high compared to rubber and other thermoplastic counterparts; typically has a load capacity between 200 and 250.

Areas of Use and Sectors

Polyamide fixed wheels are used in the most demanding industrial applications where high load carrying, chemical resistance, and movement stabilization in long straight lines are priorities:

Heavy Industrial Manufacturing: Transport trolleys for large machine parts, hydraulic units, press molds, and engine blocks.

Automotive and Metal Industry: Transport of heavy chassis and body parts in welding and assembly lines.

Food Processing and Cold Storage: Maintains its hardness in the cold chain and stands out with its hygienic structure.

Chemical and Petrochemical Industry: Transport equipment in areas with chemicals, acids, and solvents.

Airports and Logistics Hubs: Moving heavy cargo pallets and large volume warehouse trolleys on a straight line.

User Information and Benefits

This wheel is designed for users seeking maximum efficiency, durability, and operational ease when transporting heavy loads:

Highest Load Capacity: Thanks to the hardness of polyamide, it can safely carry very heavy weights relative to its wheel size.

Maximum Energy Efficiency: Extremely low rolling resistance ensures that even heavy loads can be moved with minimum pushing force (significantly reduces operator fatigue).

Superior Chemical Resistance: Resistant to oil, solvents, and many chemicals, offering long life even in harsh industrial environments.

Excellent Directional Stability: The fixed-type housing guarantees that heavy loads move over long distances without shaking or deviation.

Hygienic Use: Does not absorb water, is easy to clean, and maintains its hardness even at low temperatures.
