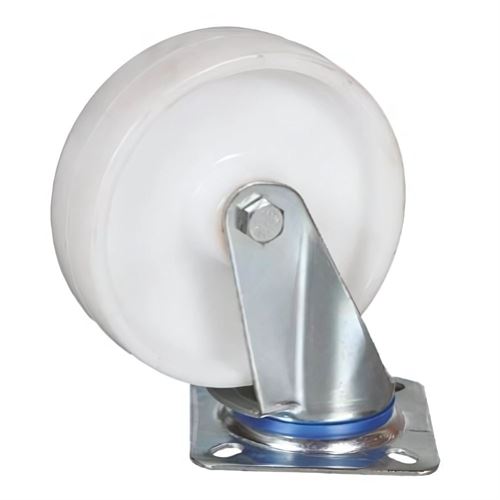

Mertsan Load Bearing Service Wheel Polyamide Swivel Type 150x45 mm

Mertsan Heavy Duty Swivel Castor Wheel Polyamide Type 150x45 mm

Maximum Maneuverability and Harsh Environment Performance Under the Heaviest Loads

The Mertsan Heavy Duty Swivel Castor Wheel Polyamide Type 150x45 mm is a castor wheel solution designed for transporting very heavy loads in industrial environments, offering superior maneuverability and the highest strength. Thanks to the rigidity of the polyamide (Nylon) material, it provides one of the highest load capacities compared to rubber wheels and offers extremely low rolling resistance. Its 150 mm diameter allows it to easily overcome obstacles on the ground, while its 45 mm width and swivel (360-degree rotatable) housing structure provide flexible and powerful movement capability even for heavy-duty transport vehicles in confined spaces.

Product Features and Material Details

This castor wheel is designed to withstand the most challenging industrial conditions, thanks to its large size and Polyamide's superior chemical/mechanical resistance.

Feature Name	Detailed Description
Wheel Diameter	150 mm (Ideal for overcoming high obstacles and smooth transport at high speeds)
Wheel Width	45 mm (Stability under heavy loads and balanced load distribution)
Wheel Material	Polyamide (PA, Nylon): A very hard and high-density thermoplastic. Excellent resistance to chemicals, oil, moisture, and abrasion. It is among the castor wheel types with the lowest rolling resistance.
Housing Type	Swivel (360° Maneuverability): The fork rotates freely around its own axis. This allows heavy loads to be moved with superior maneuverability in narrow and complex areas.
Housing Material	Pressed Steel (Zinc-Plated Steel): Heavy-duty, galvanized coating resistant to rust and corrosion.
Bearing Type	Typically with Ball Bearings or Roller Bearings; this allows even the heaviest loads to move easily with minimal friction.
Nominal Load Capacity	Very high compared to rubber and other thermoplastic counterparts; typically has a load capacity between 200 and 250.

Application Areas and Sectors

Polyamide swivel castors are critical in the most demanding industrial applications where high load carrying, chemical resistance, hygiene, and continuous maneuverability are required:

Heavy Industrial Production: Mobile transport units for large machine parts, press molds, heavy hydraulic units, and engine blocks.

Chemical and Petrochemical Industry: Transport equipment in production and storage areas containing chemicals, acids, and solvents.

Food Processing and Cold Storage: Transport systems requiring high hygiene standards and operating at low temperatures.

Automotive and Metal Industry: Fast and flexible transport of heavy loads on assembly lines, welding stations, and parts storage areas.

Heavy-Duty Storage: Warehouse trolleys requiring high maneuverability and heavy load carrying in narrow aisles.

User Information and Benefits

This castor wheel is designed for users seeking maximum efficiency, durability, and operational ease when transporting heavy loads:

Maximum Maneuverability: Thanks to its swivel design, even large and cumbersome loads can be effortlessly steered 360 degrees in confined spaces and around corners.

Highest Carrying Capacity: Can safely transport extremely heavy loads for its size, which means using fewer castors or transporting larger loads in one go.

Super Low Rolling Resistance: The rigid structure of Polyamide greatly facilitates pushing heavy loads, minimizing physical strain on the operator.

Harsh Environment Resistance: Exhibits superior resistance to oil, moisture, and most chemicals, extending castor life and reducing maintenance needs.

Hygienic Use: Does not absorb water and is easy to clean; ideal for wet, humid, and hygienic areas.
