Mertsan Heavy Duty Service Caster Rubber Swivel Type 200x50 mm

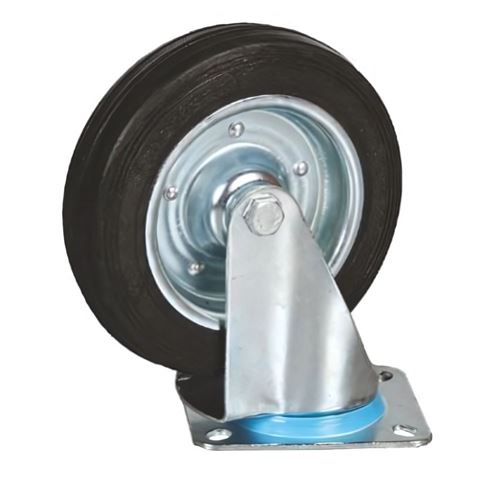

Mertsan Heavy Duty Swivel Rubber Service Caster 200x50 mm

High Capacity and Maximum Maneuverability

The Mertsan Heavy Duty Swivel Rubber Service Caster 200x50 mm is a caster model designed for heavy-duty applications, offering both high capacity and superior maneuverability, thanks to its large diameter and robust construction. Its 200 mm (20 cm) diameter ensures high transport comfort even on uneven and rough surfaces, while its 50 mm (5 cm) width distributes the load over a larger area, reducing pressure on the ground. The solid rubber outer tread provides excellent performance in industrial and commercial environments with its shock absorption and noise reduction properties. The swivel (360-degree rotating) body structure allows heavy load carriers to easily change direction even in narrow and confined spaces.

Product Features and Material Details

This model combines high load capacity due to its large size with the flexibility of rubber and the durability of its steel body.

Feature Name	Detailed Description
Wheel Diameter	200 mm (Ideal for uneven surfaces and high speeds)
Wheel Width	50 mm (High stability and excellent load distribution)
Wheel Material	Solid Rubber (Black): Maximizes vibration and shock absorption under heavy loads. Offers quiet operation and floor protection.
Rim/Hub Material	Pressed Steel Sheet (Steel): Provides strength and deformation resistance even under high loads with large diameters.
Body Type	Swivel: Offers 360-degree free movement, allowing heavy equipment to maneuver easily in any direction.
Body Material	Pressed Steel Sheet (Zinc-Plated): Galvanized coating provides high protection against rust and corrosion.
Bearing Type	Typically Bush or Roller Bearing (Roller bearings offer high durability in heavy loads and frequent use).
Nominal Load Capacity	Typically has a load capacity between 150 and 170 per wheel.

Areas of Use and Industries

This large and strong swivel rubber caster is used in critical applications where both heavy loads need to be moved and ease of movement maintained:

Industrial Production: Mobile bases for heavy industrial equipment such as welding machines, large agricultural machinery, compressors, and generators.

Construction and Job Sites: Heavy-duty wheelbarrows, on-site material transport trailers, and mobile crane support legs.

Warehousing and Logistics Centers: Heavy pallet baskets, large warehouse transport trolleys, and stacking machines.

Municipal Services: Large above-ground waste containers and waste collection carts.

General Heavy Duty: Large display stands, mobile stages, and heavy toolboxes.

User Information and Benefits

The Mertsan 200x50 mm swivel caster caters to professionals who demand both reliability and flexibility in heavy load transport operations:

Heavy Load Safety: With a carrying capacity of up to 170, it reduces the risk of wheel failure.

Excellent Ground Adaptation: The large diameter easily overcomes ground-level thresholds, cables, and small potholes, preventing snagging.

High Maneuverability: Allows even heavy loads to be rotated 360 degrees in narrow and complex areas.

Quiet Operation: The rubber tread provides much quieter movement than metal wheels, reducing noise levels in enclosed workspaces.

Chemical Resistance: Rubber wheels are resistant to many chemicals, except oils, and can be used in a wide range of industrial applications.
