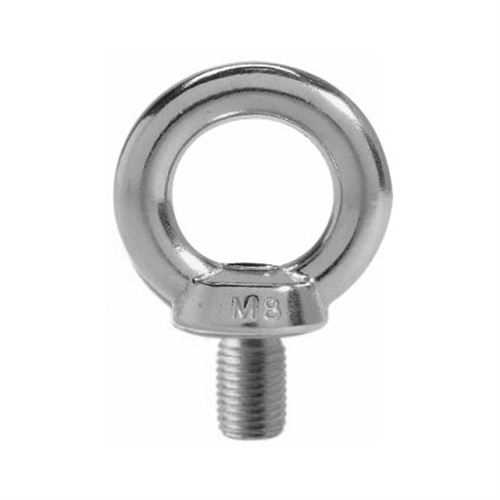

Master 535061 Male Eyebolt Ring Metric 8 mm

Master 535061 Eyebolt, Metric 8 mm

Reliable Anchoring and Lifting Point

The Master 535061 Eyebolt is a critical fastener designed to create a secure and permanent lifting, tensioning, or fastening point on a structure or equipment. This product consists of an 8 mm threaded body that screws into the machine or structure at one end, and a closed loop (eye) part at the other end, used for connecting chains, ropes, or hooks.

The 8 mm diameter makes the eyebolt ideal for medium-load applications. The loop allows for easy attachment and removal of fasteners, while the threaded body creates a tight anchor capable of withstanding high tensile forces. This product is typically used in vertical lifting aids, tensioning systems, or as reliable connection points for safety ropes.

Product Features

Feature	Detail
Product Name	Master 535061 Eyebolt
Thread Type/Diameter	(8 mm)
End Type	Closed Loop (Eye)
Material Finish	Steel (galvanized or zinc coating usually preferred for corrosion resistance)
Purpose of Use	Creating fixed, permanent lifting, tensioning, and fastening points
Advantage	Secure and unremovable anchor, quick connection point, resistance to vertical loads
Important Note	Load capacity depends on the strength of the material it is screwed into, and its capacity significantly decreases in side load applications (angular pull).

Areas of Use and Industries

The Master 535061 Eyebolt is used in all industries where reliable and permanent connection points are vital:

Industries

Machinery and Industrial Manufacturing: Creating temporary lifting points for lifting, transporting, or assembling medium-weight equipment such as engine, pump, or machine casings.

Construction and Job Sites: Anchoring points for securing light scaffolding, safety ropes, and barriers to the main structure (steel beams or thick concrete).

Logistics and Transport: Creating fastening (cargo securement) points for large crates or sensitive equipment to the floor/walls of vehicles or containers during transport.

Marine and Port Operations (Medium Load): Used in boat and yacht equipment, rigging tensioning systems, and mooring points.

Theatre and Performing Arts: Securely suspending stage lighting, scenery, or curtains from ceilings or beams.

Energy and Telecommunications: Creating connection points on poles or towers in cable and wire tensioning systems.

Applications

Lifting Point: Creating a secure eye for attaching a hook or rope by screwing the bolt onto the equipment to be lifted.

Tensioning Anchor: A permanent fastening point on a wall, floor, or pole for steel ropes or chains to be tensioned with a tensioning device.

Safety Connection: A strong anchoring point for attaching lifelines or safety ropes to prevent falls.

Hanging Systems: Securely suspending pipelines, cable trays, or ventilation ducts from structural elements.

About the Product - Eyebolt: The Reliable Way to Transfer Load to the Structure

M8 Size: Balance and Vertical Strength

Eyebolts are critical elements that transfer the tensile force of a load directly to the structure they are screwed into. The Metric 8 mm size of the Master 535061 places it at an ideal balance point for creating a permanent connection under medium vertical loads in general industrial and construction applications. This size offers sufficient tensile strength while not requiring excessively large holes for mounting. The eyebolt provides an extremely reliable anchor, especially against direct (90-degree) vertical tensile forces.

Closed Loop: Speed and Unremovable Safety

The closed loop (eye) part of the eyebolt is an ergonomic design that allows for quick attachment and removal of chains, hooks, or carabiners. The closed loop is preferred, especially at connection points that are frequently attached and detached or subjected to dynamic loads (when subjected to vertical loads, not angled), as it prevents the fastener from accidentally coming out of the loop under load. The galvanized coating, preferred for outdoor applications, increases corrosion resistance, supporting the product's long-lasting and reliable performance.

The Master 535061 Eyebolt, Metric 8 mm, is an essential and indispensable hardware element for all professionals seeking reliable fastening and lifting points in industries such as machine manufacturing, construction, marine, and logistics, thanks to its reliable and permanent anchor, the secure connection point offered by the closed loop, and its suitability for medium-load lifting and tensioning applications.
