Master 507607 Aluminum Triple Suction Cup

Master 507607 Aluminum Triple Suction Cup

ÜRÜN KODU:507607

BİZE ULAŞIN

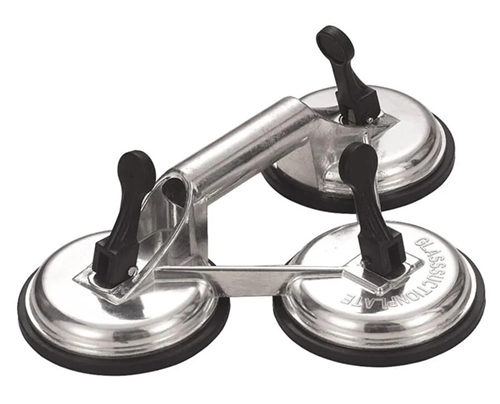

Master 507607 Aluminum Triple Glass Suction Cup for Lifting and Transporting

Master 507607 is a professional transport solution designed for the heaviest glass panels, large marble blocks, and oversized metal sheets. Thanks to its triple vacuum system, it evenly distributes the load across three different points, ensuring maximum stability and safety during transport. Its body, made entirely of cast aluminum, unlike plastic models, does not bend under heavy loads and is perfectly suited for professional construction site use.

Technical Specifications

Feature Name

Detailed Description

Brand / Code

Master / 507607

Body Material

High-Strength Cast Aluminum: Maximum durability.

Number of Suction Cups

3 (Triple System): Superior safety and balanced transport.

Load Capacity

Horizontal: 140-150 kg / Vertical: 110-120 kg.

Suction Cup Diameter

120 mm (x3): Large gripping area.

Suction Cup Base

Top-segment, flexible, and high-vacuum effect rubber.

Locking System

Independent quick-locking latches for each suction cup.

Key Features

Industrial Transport Power: With a carrying capacity of up to 150 kg, it minimizes risks during the installation of huge display windows and heavy granite slabs.

Three-Point Balance: The triple suction cup structure expands the surface adhesion area, balancing the load's pressure on the user and providing a secure grip.

Heavy-Duty Body: Long-lasting use with cast aluminum alloy resistant to impacts, falls, and harsh operating conditions.

Fast and Easy Use: Thanks to 3 independently operating levers, vacuum is created in seconds and released just as quickly.

Areas of Use

Large Projects: Facade cladding glass and large-sized display window installations.

Natural Stone Industry: Transport and placement of large marble, granite, and porcelain slabs.

Metal Industry: Transfer of large sheet metal and smooth metal plates.

Furniture and Decoration: Precise installation of huge mirrors and glass panels.

Safety Note

To maintain carrying capacity, clean the rubber surfaces of the suction cups with a damp cloth after each use. Dust or oil remaining on the surface directly affects vacuum power.
