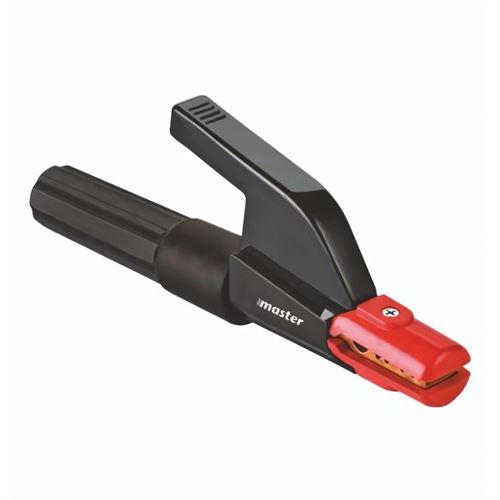

Master 505602 Welding Electrode Holder Bakelite Body 500 Ampere

Master 505602 Welding Holder 500 Amp

Reliability and Power for Heavy-Duty Welding Jobs

The Master 505602 Bakelite Body 500 Amp Welding Holder is a premium electrode holder designed for all professional arc welding (MMA) applications requiring heavy-duty and high current. This holder has been specially developed to offer maximum performance, safety, and durability under high amperage. Its high capacity of 500 Amps makes it ideal for long-term and intensive welding jobs on thick metals.

The body of the holder is made of Bakelite (Phenolic Resin) material, which provides superior heat and electrical insulation while also being lightweight and impact-resistant. The strong spring mechanism securely holds the electrode, preventing current transmission loss and stopping the electrode from slipping during welding.

Product Features

Feature	Detail
Product Name	Master 505602 Welding Holder
Amperage Capacity	500 Amps (Heavy-Duty)
Body Material	Bakelite (Phenolic Resin) - High Heat and Electrical Insulation
Intended Use	Intensive and Long-Duration Arc Welding (MMA/Shielded Metal Arc)
Electrode Grip	Strong spring mechanism, quick electrode change
Advantage	Maximum safety, high current transmission, long lifespan, excellent heat insulation

Areas of Use and Industries

The Master 505602 Welding Holder is used in all industrial sectors that require high current for continuous welding on thick metal sections:

Sectors

Heavy Industry and Steel Construction: Welding of structural steel beams and columns for large structures, bridges, high-rise buildings, and industrial facilities.

Shipbuilding and Shipyards: Continuous and demanding welding jobs on thick sheet metal and structural elements. (Requires resistance to salty and humid environments).

Machine Manufacturing Industry: Manufacturing and repair of large-sized machinery, construction equipment, and heavy industrial equipment.

Pipelines and Boiler Manufacturing: Welding of pipelines, tanks, and pressure vessels requiring high pressure and thick walls.

Railway and Heavy Transportation: Manufacturing and repair of chassis for locomotives, wagons, and heavy-duty vehicles.

Workshops (Heavy-Duty): Professional welding workshops that continuously work with thick electrodes and high currents.

Applications

Use of Thick Electrodes: Safe and stable current transmission for electrodes 4mm and thicker.

Continuity at High Amperage: Thanks to the holder's 500 Amp capacity, there is no overheating, deformation, or performance loss when welding thick materials that require the welding machine to operate at high power for long periods.

Maximum Safety: The Bakelite body provides the welder with zero electrical leakage and superior heat insulation, eliminating the risk of hand burns.

Efficient Current Transmission: High-quality conductive parts and a strong grip ensure that the current produced by the welding machine is transmitted to the electrode without loss.

About the Product 500 Amps Power: Safety and Efficiency with Bakelite

500 Amps: Not Just Power, But Also Efficiency

In welding, amperage capacity determines how thick electrodes our holder can work with and for how long. The Master 505602's 500 Amp capacity sets it apart from standard workshop holders, elevating it to heavy industry standards. This high capacity means that even at the highest settings of the welding machine, our holder will not experience overheating, deformation, or current loss. Result: Welders can utilize the full potential of their machine, completing even the thickest welds in a single pass more efficiently.

Bakelite Body: Professional Standard in Heat and Electrical Insulation

The body material of a welding holder is vital for the welder's safety. The Master 505602 uses Bakelite (Phenolic Resin), known for its superior thermal and electrical insulation properties. Bakelite:

Excellent Heat Resistance: Perfectly insulates the heat generated during high welding currents, protecting the welder's hand from burns.

High Electrical Insulation: Minimizes the risk of electrical leakage even under high voltage, thereby reducing the risk of electric shock.

Bakelite is also impact-resistant and lightweight, which reduces welder fatigue during long periods of work and extends the holder's lifespan.

Strong Grip: The Key to a Stable Arc

The heart of the holder is the mechanism that grips the electrode. The Master 505602 uses a strong spring mechanism to hold the electrode firmly and in four different positions. A tight grip ensures that the current is transmitted to the electrode with low resistance and without loss. This is critical for creating a stable and continuous arc, resulting in higher quality and more consistent welds. The quick-release mechanism also speeds up electrode changes, ensuring an uninterrupted workflow.

The Master 505602 Bakelite Body 500 Amp Welding Holder, thanks to its superior 500 Amp current capacity, the maximum heat and electrical safety provided by its Bakelite body, and the stable arc performance resulting from its strong grip, is an essential and indispensable piece of equipment for all welders seeking a reliable, durable, and highly efficient hand tool in the heavy industry, steel construction, shipbuilding, and professional welding applications requiring high current sectors.
