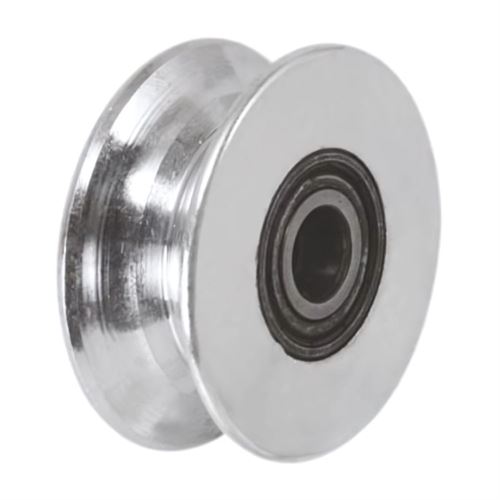

Master 503656 Galvanized Track Gate Bottom Roller 100 mm

Master 503656 Galvanized Rail Gate Bottom Roller Ø100 mm

Leader in Structural Heavy Loads

Master 503656 Galvanized Rail Gate Bottom Roller Ø100 mm is a specialized, ultra-heavy-duty wheel (roller) system designed to provide the highest load-bearing capacity, permanent reliability, and unwavering structural integrity required by the largest tonnage, thickest, and most challenging rail sliding door systems in industrial and structural applications.

Its massive 100 mm (10 cm) diameter makes this roller one of the most reliable and largest components for distributing the load of the largest doors and gigantic entrance systems in the industry. The roller is manufactured integrally from 1040-grade high-strength steel. To provide superior protection against external factors, it is coated with a thick galvanized finish resistant to the harshest conditions. The perfectly matched double bearing system guarantees smooth and long-lasting movement even under such high loads.

Product Features

Feature	Detail
Product Name	Master 503656 Rail Gate Bottom Roller
Roller Diameter	Ø100 mm (Maximum Structural Load Size)
Load Capacity	Highest Level (Critical Heavy Industry Grade)
Material	1040 Grade Steel (Maximum Strength)
Protection	Galvanized Coating (Superior Corrosion Resistance)
Bearing System	Double Bearing (Smooth Movement Under Extreme Load)
Manufacturing Method	Machined Integral (High Quality and Durability)
Feature	Standard Channel Width Compatibility (Angle Iron or Round Rail)

Usage Areas and Industries Where It Is Used

Master 503656 is used in all heavy industry, construction, energy, defense, and logistics sectors where weights far exceeding industrial standards, massive dimensions, and unwavering structural safety are essential:

Sectors

Heavy Industry and Metallurgy: Multi-tonnage access doors and enclosures made of the thickest steel in foundries, press machines, furnaces, and rolling mills.

Logistics and Port Operations: Large ship hold covers, airport hangars, and gigantic sliding barriers or cover systems in port areas.

Power Plants and Critical Infrastructure: Main entrance or security doors of nuclear or thermal power plants, large substations, and very heavy steel doors of secure equipment rooms.

Large Construction and Structural Steel: Heavy steel doors or sound/wind barriers at tunnel entrances where heavy machinery and equipment pass on construction sites.

Defense Industry: Hinges for ultra-thick armored steel doors of high-security military facilities and bunkers.

Applications

Maximum Load Support: With a 100 mm diameter, one of the largest roller diameters in the industry, it perfectly distributes the load of multi-ton doors and completely prevents door sagging.

Permanent Deformation Resistance: 1040 steel material and integral manufacturing reduce the risk of the roller crushing or deforming to zero, even under extreme load, vibration, and thermal stress.

Long Service Life in Harsh Environments: The thick galvanized coating maximizes rust and corrosion resistance against the harshest chemical and environmental conditions, guaranteeing reliability in demanding environments.

Power with Low Friction: The double bearing system allows even these gigantic doors to move smoothly and quietly with minimal power from automatic systems.

About the Product Ø100 mm Roller: A Symbol of Safety in Extreme Heavy Loads

100 mm Diameter: The Peak of Industrial Power

The Master 503656 Rail Gate Bottom Roller, with its Ø100 mm diameter, is designed not just as a roller, but as a cornerstone of a structure. This dimension is essential for critical industrial and defense applications where door weights are measured in tons and movement system failure is unacceptable. The 100 mm diameter distributes the door load over such a wide area on the rail that both the life of the roller is extended and the risk of wear and deformation of the rail system is minimized. This is a guarantee of uninterrupted operation in high-cost and large-scale infrastructure projects.

Unwavering Durability and Environmental Protection

The roller's integral manufacturing from 1040-grade steel provides the product with incredible core strength. This is a structural assurance that the roller will not crush or bend even under the heaviest doors. This strength is complemented by a thick galvanized coating. Galvanizing offers ultimate protection against rust and corrosion, especially in heavy industrial environments with salty air, high humidity, or chemical vapors.

Efficient and Fluid Movement

Maintaining smooth movement even under extremely heavy loads is the most important feature of the Master 503656. The double bearing system perfectly balances the vertical and lateral forces created by the door's weight, preventing unnecessary stress from building up in the bearing races. This allows the door to be moved effortlessly by automation systems, reducing motor load and energy consumption.

The Master 503656 Galvanized Rail Gate Bottom Roller Ø100 mm is a specialized, ultra-strong, and essential wheel solution for the stable, long-lasting, and reliable movement of the heaviest, thickest, and most critical doors and panels in heavy industry, structural steel construction, energy, logistics, and defense sectors, thanks to its unparalleled overload carrying capacity provided by the 100 mm diameter, the absolute corrosion resistance offered by the galvanized coating, and the smooth movement under extreme load enabled by the double bearing system.
