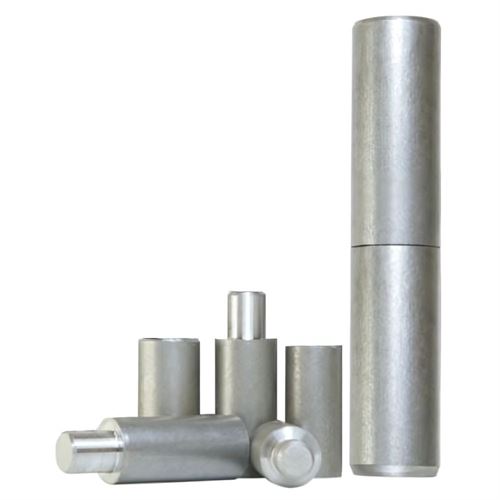

Master 503605 Mil Hinge Male Female Set 20 mm

Master 503605 Pin Hinge Male Female Set 20 mm

Maximum Strength and Lasting Security for the Heaviest Loads

The Master 503605 Pin Hinge Male Female Set 20 mm is a hinge system specifically designed to hinge the most demanding loads in industry, massive doors, and extremely thick steel structures. It is weld-mounted, non-deforming under extreme load, and provides unrivaled structural strength.

This hinge consists of two thick parts: one male (pin) and one female (socket). The massive 20 mm diameter pin gives the hinge the highest level of carrying capacity on an industrial scale and unwavering durability against harsh environments. This structure allows the door, despite being permanently fixed by welding, to be easily separated by lifting it vertically when servicing or dismantling is required. Thanks to its weld-on mounting, it is designed for applications beyond limits where absolute security and structural integrity are critically paramount.

Product Features

Feature	Detail
Product Name	Master 503605 Pin Hinge Male Female Set
Pin Diameter	20 mm (Absolute Heavy Industry Carrying Capacity)
Structure	Male (Pin) and Female (Socket) Set
Mounting Type	Weld-on (For Structural Steel and Heavy Constructions)
Material	High-Strength Steel (Heavy Duty Class)
Application Area	Heaviest Industrial Doors, Massive Safes, Armored Enclosures
Feature	Removable Design, Non-deforming Under Overload, Maximum Security

Usage Areas and Industries

Master 503605 is used in all heavy industry, energy, defense, and metallurgy sectors where engineering limits are exceeded, highest weights, largest dimensions, and absolute security requirements exist:

Sectors

Metallurgy and Heavy Industry Facilities: The thickest and heaviest access doors of industrial furnaces or large molding machines in steel foundries that handle high temperatures and weights.

Defense and Critical Infrastructure: Installation of ultra-thick steel doors for military bunkers, nuclear power plant enclosures, large secure underground facilities, and armored control rooms at airports.

Shipbuilding and Port Equipment: Installation of large ship hatch covers, access panels for marine platforms, and massive barrier/gates in port areas.

Heavy Machinery Manufacturing: Armored enclosures for heavy industrial presses, massive robotic cells, and maintenance covers for large conveyor systems.

Structural Steel Construction: Maintenance access panels in large steel towers or viaducts.

Applications

Highest Level of Weight Support: The 20 mm pin diameter surpasses all standards. This hinge carries the static and dynamic loads of doors weighing several tons without the slightest risk of bending or breaking.

Absolute Structural Security: Weld-on mounting integrates the hinge with the main steel structure of the door and frame, completely eliminating the security vulnerability caused by loose screws or bolts. This meets the highest security requirements.

Zero Deformation and Long Service Life: The extremely thick pin shows superior resistance to continuous vibration, thermal stress, and intense use, maintaining the stability of the hinge structure for years.

Practical Service: Thanks to its pin and socket structure, it allows even these massively heavy doors to be quickly removed vertically using a crane or lifting equipment.

About the Product MT 503605: The Strongest Hinge in the Industrial World

20 mm Pin: The Carrying Force of Heavy Industry

The 20 mm pin diameter of the Master 503605 elevates it far beyond standard hinge solutions on the market and is an expression of heavy industrial-grade engineering. This hinge not only supports thick and heavy doors but also guarantees that the door will not sag and will maintain its functionality even under high wind loads, earthquakes, or other structural stresses. The 20 mm pin offers the maximum stability and reliability expected from a hinge.

Permanent Security and Weld Connection

The fundamental design philosophy of this hinge is based on permanent and unbreakable security. Weld-on mounting makes the hinge a structural extension of the door and frame, completely eliminating the security vulnerability caused by loose screws or bolts. Especially in sectors where there is no room for error, such as defense, energy, and metallurgy, the strength provided by the 20 mm pin and the permanence of welding offer the highest level of assurance for equipment and life safety.

Balance of Engineering and Practicality

Despite its immense strength, the Master 503605 does not compromise on practicality. The male-female structure allows even heavy doors to be quickly removed. This means that maintenance, painting, or repair operations in demanding industrial environments can be carried out safely, quickly, and logistically easily. This feature minimizes operational downtime while providing great convenience in areas where work is done with thick and heavy steel parts.

The Master 503605 Pin Hinge Male Female Set 20 mm, thanks to the unrivaled overload carrying capacity provided by its 20 mm pin diameter, the absolute structural security brought by weld-on mounting, and the practical detachability offered by its male-female structure, is a specialized, ultra-strong, and ultimate fastener for the unwavering, long-lasting, and reliable hinging of the heaviest, thickest, and most critical doors and panels in heavy industry, security, energy, metallurgy, and defense sectors.
