Master 501370 Square Pergola Foot M14

Master 501370 Square Pergola Foot M14

Critical Ground Connection for Structural Timber Systems

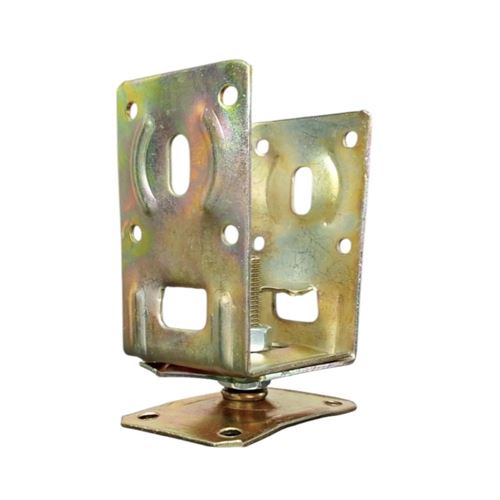

The Master 501370 Square Pergola Foot M14 is a heavy-duty adjustable connector designed to secure timber columns, posts, and structural elements to concrete or solid ground with high strength, security, and vibration-free stability. With an M14 bolt diameter, it offers high shear and tensile resistance.

This product is a critical architectural solution that provides air circulation between the timber post and the ground, protecting the post from moisture and minimizing the risk of rot/deterioration. Its adjustable design allows for fine-tuning of the column level even after installation, providing perfect vertical alignment even on sloped or uneven surfaces.

Product Features

Feature	Detail
Product Name	Master 5 01370 Square Pergola Foot
Connection Type	Adjustable Timber Column/Post Foot
Bolt Diameter	M14 (Metric 14 mm)
Material	High Strength Steel
Surface Finish	Zinc Plating (Galvanized) for Corrosion Resistance
Design	Ground Anchor Plate and Adjustable Timber Connection Plate (Square)
Purpose of Use	Elevating and securing timber posts to the ground, Moisture Protection, Vertical Alignment

Areas of Use and Industries

The Master 501370 Square Pergola Foot M14 is an essential connecting element in all construction, landscaping, and furniture industries where there is a need to increase the durability and stability of timber structures:

Sectors

Landscaping and Garden Architecture: Securing pergolas, gazebos, and timber deck structures to the ground. Extends the life of the structure by preventing direct contact with damp ground.

Light and Medium Structural Construction: Securing main support posts of small timber houses, sheds, garages, or jetties to concrete foundations.

Commercial and Recreational Areas: Mounting posts for awnings or shading systems of outdoor restaurants and cafes to the ground. Anchoring main posts of children's playground equipment.

Renovation and Restoration: Elevating existing structural timber posts from ground level to protect them from moisture or precisely aligning new posts after renovation.

Applications

Easy and Precise Vertical Alignment: Thanks to the M14 adjustment mechanism, the vertical position of the post can be precisely adjusted even after installation is complete. This ensures aesthetic and structural perfection even on sloped or uneven patios/surfaces.

Protection Against Moisture and Rot: Keeping the timber post a few centimeters above the ground prevents water accumulation and moisture penetration into the wood. This significantly extends the life of the post, especially in outdoor structures.

High-Strength Connection: The strong M14 bolt and steel plates provide high structural resistance against wind loads, shear, and tensile forces on the post.

Secure Ground Anchoring: Holes in the base plate allow the foot to be firmly secured to concrete ground with chemical anchors (M14) or heavy-duty mechanical anchors.

About the Product - Pergola Foot: The Unseen Hero Extending the Life of Timber Structures

The Greatest Enemy of Timber Structures: Moisture

When it comes to timber structures, direct contact of posts with the ground is the most critical point for moisture accumulation, leading to rot and structural weakening. The Master 501370 Square Pergola Foot M14 is designed to solve this fundamental architectural problem. This foot effectively elevates the post from ground level, cutting off water contact with the wood and promoting air circulation. This simple yet vital detail extends the durability and service life of outdoor structures like pergolas, gazebos, or timber decks for years.

Perfect Aesthetics and Structural Harmony with Easy Adjustment

The adjustable M14 mechanism of the pergola foot is an invaluable tool for perfecting the vertical alignment of posts during and after installation. Especially in large and complex timber structures, millimeter errors in concrete pouring or structural settlements can prevent posts from being perfectly vertical. The Master 501370 allows for this fine adjustment to be made easily via a nut/bolt system, ensuring that the structure is not only aesthetically perfect but also structurally capable of bearing the load evenly.

M14 Strength: Unshakeable Against Wind and Load

The M14 bolt diameter indicates that this pergola foot is a heavy-duty connector, beyond light-duty applications. Timber structures are often exposed to high wind and lateral loads. Thanks to its strong steel structure and M14 anchor bolt, the Master 501370 reliably transfers these tensile and shear forces to the concrete foundation, ensuring that the structure remains in place even in stormy weather.

The Master 501370 Square Pergola Foot M14 is a fundamental and critical connecting element for the longevity and structural safety of timber posts in the landscape architecture, construction, and outdoor structures sectors, thanks to the high structural strength provided by the M14 bolt, the perfect vertical alignment offered by the adjustable mechanism, and its ability to protect wood from moisture.
