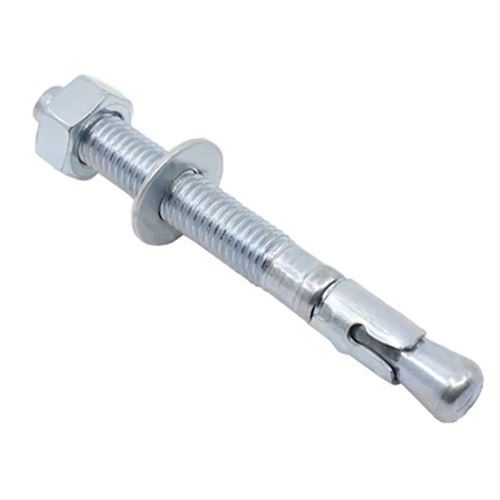

Master 501275 Clip-On Steel Anchor 12×150 mm

Master 501275 Clip Steel Anchor 12x150 mm

Ultra Deep and Maximum Load Capacity Anchoring Solution

Master 501275 Clip Steel Anchor 12x150 mm is a super heavy-duty anchor designed for securing the most critical, extremely heavy loads, both industrial and non-structural, to solid concrete, natural stone, or thick solid brick surfaces with the highest strength, extreme deep anchorage, and absolute reliability. With a 12 mm diameter, it offers superior tensile and shear resistance, while the 150 mm (15 cm) length provides the highest safety margin for applications requiring the deepest penetration and for very thick mounting components.

This anchor is made of high-strength steel that expands as the nut is tightened, clamping securely into the base material. Thanks to its clip-on (Clip/Wedge Anchor) design, as the nut is tightened, it pulls the clip underneath upwards, ensuring an unshakeable grip at the bottom of the hole. The extreme length of 150 mm is indispensable for reaching solid structural concrete behind thick insulation layers, wide screed thicknesses, or high-legged machine chassis with confidence.

Product Features

Feature	Detail
Product Name	Master 501275 Clip Steel Anchor
Dimensions	12 x 150 mm (Diameter x Length)
Material	High-Strength Steel
Design Type	Wedge/Clip Anchor
Application Area	Concrete, Structural Brick, Natural Stone (Extreme Deep Anchorage)
Intended Use	Extremely Heavy Load Anchoring, Securing Thick Mounting Components and Insulated Surfaces
Advantage	Maximum tensile and shear resistance, structural safety with extreme deep anchorage, possibility of mounting in thick materials

Areas of Use and Industries

The Master 501275 Clip Steel Anchor 12x150 mm is indispensable due to its extremely high load-bearing capacity, very long anchoring depth, and critical safety requirements, especially in heavy industry, energy, infrastructure, and large construction sectors:

Sectors

Heavy Industry and Machine Installation: Anchoring large and high-based industrial machines, vibrating equipment, and heavy steel consoles to the floor. The 150 mm length reaches the main structure behind the machine chassis and thick epoxy grout.

Mechanical Installations and HVAC (Critical): Anchoring heavy and large diameter main pipe runs, air handling units, and cable busbar systems from ceilings with a high safety margin.

Storage and Logistics (Super Heavy-Duty): Floor anchoring of the main support legs of multi-story and ultra-heavy load-bearing warehouse racking systems. The length completely eliminates cracks and coating thicknesses in floor slabs.

Infrastructure and Bridges: Critical mounting of high-vibration and heavy-duty pipe/cable carriers to reinforced concrete surfaces in places such as under bridges, viaducts, and tunnels.

Non-Structural High-Leg Mounts: Securing main support structures for facade systems to walls/floors with thick insulation or air gaps (penetrating insulation thickness to anchor into the main structure).

Applications

Maximum Safety and Load Capacity: The 12 mm diameter safely handles the most demanding static, tensile, and shear loads, and the 150 mm length distributes loads over a large concrete volume.

Extreme Deep Anchorage Safety: The 150 mm length ensures that the anchor reaches absolute penetration depth within the concrete. This provides anchorage in solid structural concrete even where thick coatings or weak areas exist on the concrete surface.

Thick Material Mounting: This length is ideal for mounting high-legged machine bases, thick steel construction plates, or insulated facade systems, as sufficient grip depth remains even after the anchor passes through the large mounting component.

Vibration Resistance: The unshakeable lock created by the clip design prevents the anchor from loosening under intense vibration or dynamic loads, which is critical for industrial machine anchoring.
