Master 501025 Through Bolt Anchor 12×90 mm

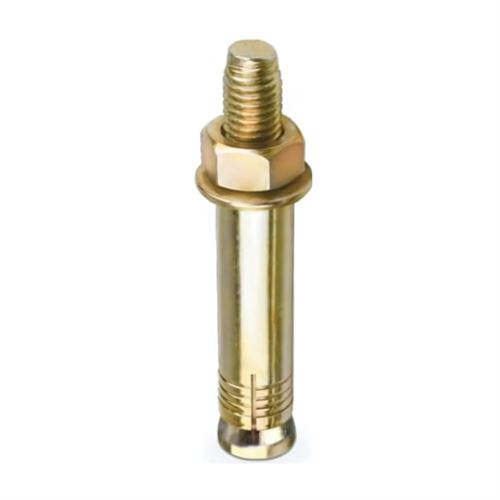

Master 501025 Through Bolt Steel Anchor 12x90 mm

Strength and Speed for Structural Heavy Loads

The Master 501025 Through Bolt Steel Anchor 12x90 mm is a heavy-duty anchor designed for fixing the heaviest, most critical, and structural loads to main building materials such as solid concrete, natural stone, or solid brick at high speed and with maximum reliability. With a 12 mm diameter, this anchor offers superior shear and slip resistance, while its 90 mm length transmits the fixing force to the deepest and most stable layers of the building material, ensuring absolute grip even under demanding static and dynamic loads.

The through bolt design of this anchor allows for quick installation directly through the material to be mounted (through fixing), which significantly increases site efficiency. Made from high-strength steel, the conical nut expands within the sleeve as the bolt is tightened, securely clamping the anchor into the hole and resisting loosening under structural tension and dynamic loads.

Product Features

Feature	Detail
Product Name	Master 501025 Through Bolt Steel Anchor
Dimensions	12 x 90 mm (Diameter x Length)
Material	High-Strength Steel
Design Type	Through Bolt (Serial and Structural Installation)
Application Area	Concrete, Structural Brick, Natural Stone (Heavy Duty)
Purpose of Use	Deep Anchoring of the Heaviest Structural and Critical Loads
Advantage	Maximum shear resistance with 12 mm, deep anchoring with 90 mm, fast installation capability

Application Areas and Industries

The Master 501025 Through Bolt Steel Anchor 12x90 mm is an indispensable fastening element in all heavy industry, construction, infrastructure, and critical installation sectors requiring the highest grip strength, deep anchoring, and structural load capacity:

Sectors

Structural Construction and Engineering: Bases of load-bearing steel columns and beams, anchoring of heavy reinforced concrete strengthening elements, large-sized door/window frames, and main stair supports.

Heavy Industry and Machine Assembly: Fixing large and heavy industrial machine bases, crane runways, main legs of conveyor systems, and equipment under dynamic loads such as vibrating presses to floors.

Infrastructure and Transportation: Critical fastening of highway guardrails, sound barriers, large traffic signaling poles, and support elements in bridges.

Storage and Logistics: Anchoring of multi-story and ultra-heavy load-bearing storage rack systems to the floor with absolute reliability.

Mechanical and Energy: Main hanger systems for large-diameter and heavy pipelines, bases for large HVAC units, and critical fastening of transformer equipment.

Applications

Fast Structural Fixing (Through Fixing): The plate or base to be mounted is drilled, and the anchor is inserted directly through this hole and tightened. This method ensures perfect alignment and significantly shortens installation time even in the most critical applications.

Maximum Tensile and Shear Capacity: The 12 mm diameter provides the highest level of strength required to withstand the heaviest static and dynamic loads. The 90 mm length distributes this force deeply, increasing the anchor's fatigue resistance.

Deep Anchor Security: The 90 mm length ensures that the anchor's load is transmitted to the main structural core layer without being affected by surface weaknesses.

Vibration Resistance: The tight locking mechanism of the through-bolt design and the 12 mm diameter provide maximum stability against intense vibratory loads from industrial machinery.

About the Product 12x90 mm Through Bolt Anchor: Strong, Deep, and Fast Fixing

12 mm Through-Bolt Design: Power Without Sacrificing Efficiency

The Master 501025 Through Bolt Steel Anchor 12x90 mm combines the superior strength required for structural loads with a 12 mm diameter and the installation speed provided by the through-bolt design. In construction and heavy industry, the 12 mm thickness meets high safety and load capacity standards. The through-fixing technique allows for easy and error-free attachment of large steel plates and thick equipment legs to the concrete surface, thereby minimizing installation errors and project durations.

90 mm Depth: Stability for Critical Loads

The 90 mm deep anchoring forms the basis of this anchor's reliability in heavy and critical applications. This length ensures that the anchor's fixing force is transmitted to the strongest and most robust layers of the main structure. Especially for machinery operating under dynamic loads, the powerful expansion mechanism provided by the through-bolt design and the 90 mm depth offer superior protection against loosening. This is a critical advantage in terms of long-term system safety and operational costs.

Steel Quality: Guarantee of Structural Integrity

Made from high-strength steel, the Master 501025 is resistant to demanding industrial conditions, humidity, and high temperatures. Unlike other anchor types, through-bolt steel anchors maintain their load-bearing capacity even under high heat (fire), contributing to the integrity of critical structural and safety systems. The Master 501025 is an indispensable fastening solution for your project's goals of maximum safety and stability.

The Master 501025 Through Bolt Steel Anchor 12x90 mm, with its superior 12x90 mm size offering the highest level of resistance to structural and dynamic loads, its through-bolt design providing fast and efficient installation, and its steel material ensuring unique longevity, is the ultimate and most critical fastening element for all professionals seeking permanent, deep, and absolutely reliable fastening solutions for the heaviest and most critical loads in heavy industry, structural construction, infrastructure, machine assembly, and critical logistics sectors.
