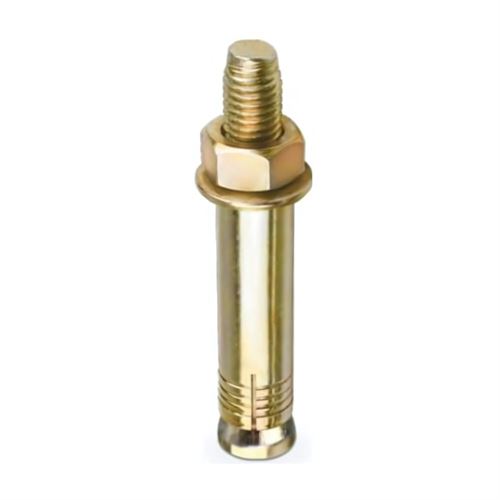

Master 501024 Pipe Bolt Steel Anchor 10×110 mm

Master 501024 Through Bolt Steel Anchor 10x110 mm

Ultra Deep and Fast Anchoring for Extreme Loads

The Master 501024 Through Bolt Steel Anchor 10x110 mm is a heavy-duty anchor designed for maximum reliability, deep and fast anchoring of the heaviest, most critical, and structural loads to main building materials such as solid concrete, natural stone, or thick solid brick. With a 10 mm diameter offering superior shear and tensile strength, this anchor provides unparalleled grip thanks to its 110 mm length, which transfers the fastening force to the deepest and most stable layers of the building material.

The through-bolt (Through Bolt) design of this anchor maximizes installation efficiency, while its 110 mm length safely spans gaps created by thick plaster, insulation, or mounting plates. Made from high-strength steel, the conical nut expands within the sleeve when the bolt is tightened, securely locking the anchor into the hole and resisting loosening even under dynamic and high tensile loads.

Product Features

Feature	Detail
Product Name	Master 501024 Through Bolt Steel Anchor
Dimensions	10 x 110 mm (Diameter x Length)
Material	High-Strength Steel
Design Type	Through Bolt (Serial and Deep Installation)
Application Area	Concrete, Thick Plastered/Insulated Walls, Structural Applications
Purpose of Use	Critical Anchoring of Ultra-Heavy and Dynamic Loads at Maximum Depth
Advantage	Deepest anchoring safety with 110 mm, high strength with 10 mm, fast installation

Applications and Industries Where It Is Used

The Master 501024 Through Bolt Steel Anchor 10x110 mm is an essential fastening element in all heavy industry, construction, infrastructure, and critical installation sectors requiring maximum grip strength, ultra-deep anchoring, and heavy/dynamic load capacity:

Sectors

Structural Construction and Facade Systems: Deep anchoring of steel support brackets and cladding panels to main structural concrete in facades with thick plaster, stone cladding, or insulation.

Heavy Industry and Vibrating Equipment: Installation of equipment under dynamic load, such as large HVAC units, industrial machine bases, and conveyor system legs.

Infrastructure and Transportation: Deep and critical anchoring of large traffic signal poles, highway barriers, and sound barrier bases.

Storage and Logistics: Absolutely reliable anchoring of multi-story and ultra-heavy load storage racks (rack systems) to the floor.

Mechanical and Electrical Installations: Installation of support systems for heavy pipelines, cable trays, and electrical transformers in main shafts and high ceilings.

Applications

Ability to Span Gaps: The 110 mm length ensures that the anchor not only carries the load but also safely spans gapped layers such as thick plaster, insulation material, or wide gaskets, securing itself to the main structural part.

Critical Load Capacity: The 10 mm diameter provides the high strength required to withstand heavy static, tensile, and dynamic loads.

Fast Installation (Through Fixing): The ability to drill through the material to be mounted and directly fasten it simplifies alignment and shortens installation time, providing significant efficiency in large projects.

Maximum Tensile Resistance: The expansion mechanism of the through-bolt design ensures a strong grip at the deepest point, providing superior resistance to tensile loads.

About the Product 10x110 mm Through Bolt Anchor: Bridging Depth, Speed, and Strength

110 mm Depth: Overcoming Surface Weaknesses

The most critical feature of the Master 501024 Through Bolt Steel Anchor 10x110 mm is its 110 mm ultra-deep anchoring capacity. In modern construction, thick insulation and facade claddings prevent traditional short anchors from safely reaching the main load-bearing structure. The 110 mm length allows the anchor to completely bypass these weak outer layers, transferring the load to the strongest, unspoiled core of the structural concrete. This means absolute reliability, especially in exterior facade fixings, under wind and vibration loads.

Through-Bolt Design and 10 mm Strength: Efficiency and Robustness

The Master 501024 combines the high strength provided by a 10 mm diameter with the speed of through-bolt installation. The through-bolt design ensures that the mounting material is secured without displacement, minimizing error margins and significantly shortening installation time. The 10 mm thickness, despite this fast installation, guarantees that the anchor can safely support the heaviest static and dynamic loads. This anchor provides time and labor savings in high-volume, heavy-load installations, without ever compromising safety.

Steel Quality: Structural Longevity

Made from high-strength steel, the Master 501024 offers superior resistance to corrosion and harsh industrial environments. Most importantly, its metallic structure makes it resistant to high temperatures (fire), contributing to overall structural safety by maintaining the load-bearing capacity of critical systems (fire suppression lines, escape route lighting). The Master 501024 is designed for the toughest and longest-lasting fastening solutions.

The Master 501024 Through Bolt Steel Anchor 10x110 mm, with its 10x110 mm ultra-strong and deep size for maximum load and gap-spanning capability, fast and efficient installation thanks to its through-bolt design, and unmatched longevity due to its steel material, is an absolutely reliable and high-performance fastening element for the most critical, heaviest, and deepest anchoring requirements in the construction (facade systems), heavy industry, infrastructure, mechanical, and logistics sectors.
