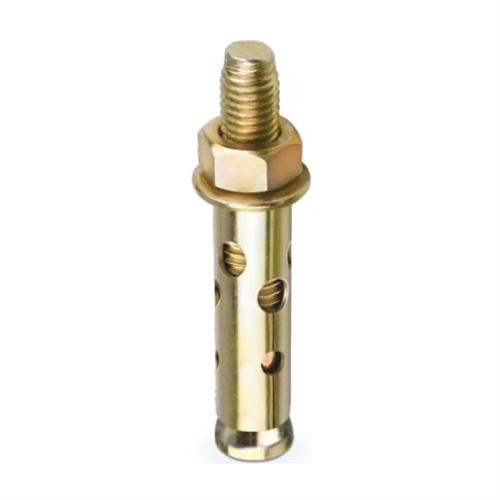

Master 501007 Sleeve Anchor 12×90 mm

Master 501007 Sleeve Steel Anchor 12x90 mm

Structural Strength for the Heaviest Loads

The Master 501007 Sleeve Steel Anchor 12x90 mm is a heavy-duty anchor designed for the maximum security and permanent fastening of the heaviest, most critical, and structural loads to main construction materials such as concrete, solid brick, or natural stone. With a 12 mm diameter, this anchor offers superior shear and slip resistance, while its 90 mm length ensures an unmatched gripping force by transferring the fastening force to the deepest and most stable layers of the structural material.

This anchor is made from high-strength steel that expands when the bolt is tightened, distributing the anchoring force evenly across the entire surface of the hole. The sleeve design spreads applied static and dynamic loads over a large area, minimizing the risk of cracking in the main material and increasing the anchor's fatigue resistance. The 12 mm thick and robust steel structure guarantees maximum longevity, critical mechanical resistance, and high fire resistance for projects.

Product Features

Feature	Detail
Product Name	Master 501007 Sleeve Steel Anchor
Dimensions	12 x 90 mm (Diameter x Length)
Material	High-Strength Steel
Design Type	Sleeve Anchor
Application Area	Concrete, Structural Brick, Natural Stone (Heavy-Duty)
Purpose of Use	Deep Fastening of Structural, Heavy, and Critical Loads
Advantage	Maximum shear resistance with 12 mm, deep anchoring security with 90 mm, excellent load distribution

Areas of Use and Which Sectors It Is Used In?

The Master 501007 Sleeve Steel Anchor 12x90 mm is a fundamental fastening element in all heavy industry, construction, infrastructure, and critical installation sectors that require the highest gripping force, deep anchoring, and structural load capacity:

Sectors

Construction and Structural Steel: Anchoring of supporting steel columns and beams to floor or wall connection bases, heavy reinforced concrete formwork supports, critical safety barriers, and main stair stringers.

Heavy Industry and Machine Assembly: Fastening of large and heavy industrial machine bases, crane runways, main legs of conveyor systems, and equipment under dynamic load such as vibrating presses to floors.

Infrastructure and Bridge Construction: Critical fastening of highway guardrails, sound barriers, large traffic signaling poles, and repair or support elements on bridges.

Storage and Logistics: Absolutely reliable fastening of multi-story and ultra-heavy load-bearing storage racking systems to the floor.

Mechanical and Energy: Critical fastening of main hanging systems for large-diameter and heavy pipelines, bases for large HVAC units, and transformer equipment.

Applications

Structural Safety: The 12 mm diameter provides the maximum strength required to safely carry the highest shear and tensile loads in applications where structural integrity is critical.

Importance of Deep Anchoring: The 90 mm length ensures that the anchor's load is transferred to the main structural core layer without being affected by surface weaknesses.

Dynamic Load Management: Thanks to the 12 mm thickness and the large contact surface of the sleeve design, it offers maximum resistance against vibrating loads from machines and conveyor systems and protection against loosening.

Reliable Load Distribution: The sleeve design distributes the high expansion force homogeneously along the hole, reducing the risk of cracking and allowing for the highest performance in concrete and brick.

About the Product 12x90 mm Anchor: Indispensable for Heavy Loads

12 mm Diameter: Raising Standards in Strength

The Master 501007 Sleeve Steel Anchor 12x90 mm represents a significant leap in power in anchor technology with its 12 mm diameter. This size is a benchmark for the heaviest loads and most critical safety applications in engineering and construction projects. The 12 mm thickness not only carries static loads but also has superior resistance against the intense dynamic (vibrating) forces generated by heavy machinery and industrial equipment. This means that the fastening point will continue to perform its duty without failure for many years.

90 mm Depth and Sleeve Reliability

The critical performance of this anchor is achieved by the combination of 90 mm deep anchoring and the sleeve design. The 90 mm depth isolates the fastening point from external factors and weak surface layers, ensuring that the force is connected to the strongest core of the main structure. The sleeve design, on the other hand, distributes the large expansion force created by the 12 mm across the entire surface of the hole, preventing concrete or brick from cracking while generating the highest tensile resistance. This is a vital feature, especially for projects where structural safety must not be compromised.

Steel Quality: Guarantee of Structural Integrity

Made from high-strength steel, the Master 501007 is resistant to harsh industrial environments, corrosion, and most importantly, high fire temperatures. This contributes to the continuation of structural integrity by maintaining its locking and gripping capability even in a fire, when fastening emergency systems or main load-bearing elements. The Master 501007 is more than just a fastening element; it is an investment in the long-term safety of the project.

The Master 501007 Sleeve Steel Anchor 12x90 mm, with its superior 12x90 mm size offering maximum load and vibration resistance, sleeve design for reliable load distribution, and steel material for unparalleled longevity, is the ultimate and most critical fastening element for all professionals seeking permanent, deep, and absolutely reliable fastening solutions for the heaviest and structural loads in heavy industry, structural construction, infrastructure, machine assembly, and critical logistics sectors.
