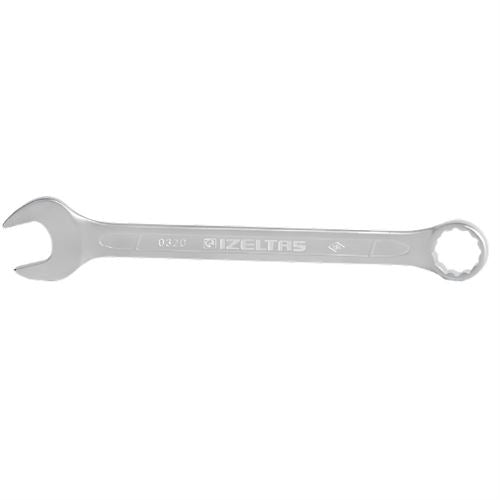

İzeltaş 0320020034 Combination Wrench Short Type 34 mm

İzeltaş 34 mm Stubby Combination Wrench - 0320020034

The 34 mm Stubby Combination Wrench with product code 0320020034, one of İzeltaş's most special products for heavy-duty applications, is an engineering marvel that brings together enormous nut sizes with confined working spaces. Normally, a 32 mm wrench has a significantly long standard length; however, this "Stubby" (short) form provides high torque in tight areas where access would otherwise be impossible.

This wrench features the classic combination structure with an open end on one side and a 12-point box end on the other. What makes the product unique is its "Stubby" design. Large nuts, such as 34 mm, are typically found in heavy machinery, ships, or industrial facilities. These nuts are sometimes located behind panels or deep within engine blocks where a standard wrench body would not fit. With this product, İzeltaş offers both the strength required for 32 mm and the maneuverability in tight spaces within a single body.

Material Properties and Manufacturing Technology

İzeltaş's high quality standards are evident in every detail of this compact yet powerful wrench:

Superior Alloy Steel: Manufactured from high-grade Chrome Vanadium (Cr-V) steel. Vanadium provides the "toughness" property that prevents the wrench from cracking under heavy torque loads; Chromium offers full protection against rust and surface hardness.

Drop Forged: Steel is shaped by forging under massive presses while in a red-hot state. This method maintains the fibrous continuity of the metal's internal structure, ensuring maximum fracture resistance even in the furthest parts of the wrench.

Surface Protection: Armored with a Chrome plating resistant to industrial chemicals, moisture, and oil. The Matte (Satin) surface texture provides a secure grip that prevents the wrench from slipping even when your hands are oily.

12-Point Box End: Envelopes the nut completely, distributing the load evenly across the entire surface. This completely prevents the corners of 32 mm nuts from rounding off (stripping).

Areas of Use and Sectoral Distribution

The 34 mm size is a "key" measurement in heavy industry. The stubby advantage is life-saving in the following areas:

Heavy Construction Equipment and Mining: For removing hydraulic system connections and large fittings in the narrow chassis gaps of excavators, bulldozers, and rock trucks.

Maritime (Shipyard and Ship Repair): In confined spaces around narrow valve groups, bilge systems, and propeller shafts in ship engine rooms.

Oil and Gas Pipelines: For intervening with large flange nuts located in narrow gaps between two lines in complex pipelines.

Power Plants: In large connections in narrow areas within wind turbine mechanisms or dam gates.

Railway Systems: In confined assembly points in the undercarriages of locomotives and wagons.

Key Advantages for the User

Unique Maneuverability: While a standard 34 mm wrench might hit narrow corners due to its length, its short body allows you to continue turning the nut.

Compact and Powerful: Despite its small size, thanks to its special heat treatment, it demonstrates superior resistance against the high leverage a professional user can apply.

Work Safety: Thanks to the precise 12-point box end design that completely surrounds the nut, the risk of the wrench slipping is minimal; this prevents sudden uncontrolled movements in confined spaces.

Space Saving: Takes up much less space than standard large wrenches in mobile service vehicles and belt-type tool bags.

Technical Specification Summary

Feature	Detail
Product Code	0320020034
Jaw Size	34 mm
Type	Combination (Open + Box End) - Stubby
Material	Chrome Vanadium (Cr-V)
Surface Finish	Chrome Plated / Matte Satin
Standards	DIN 3113 / ISO 3318 / ISO 7738
