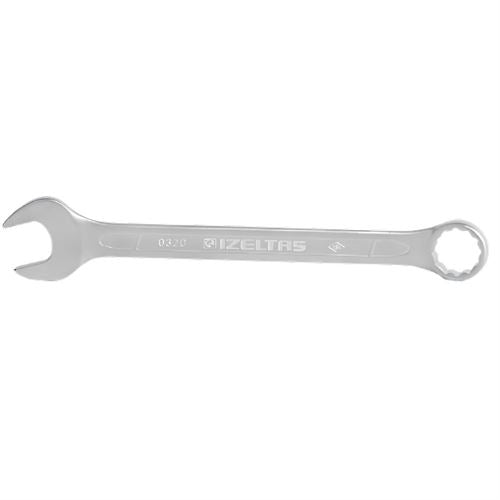

Izeltaş 0320020022 Combination Wrench Short Type 22 mm

İzeltaş 22 mm Stubby Combination Wrench - 0320020022

The 22 mm Stubby Combination Wrench, with product code 0320020022, is a powerful part of İzeltaş's special series designed to provide high maneuverability in confined spaces. It offers professional solutions for restricted areas where standard wrenches cannot move due to their length.

This wrench combines the classic combination form, with an open end on one side and a box end on the other, with a "Stubby" body structure optimized for limited volumes. The 20 mm size is frequently encountered, especially in the automotive and heavy industry sectors, and thanks to the short form of this product, even the hardest-to-reach bolts become controllable.

Material Properties and Production Technology

Embodying İzeltaş quality in every detail, this product has been developed to withstand extreme stresses:

Superior Alloy: Manufactured from high-quality Chrome Vanadium (Cr-V) steel. Vanadium increases the toughness of the metal, preventing cracks, while Chromium provides superior surface hardness and corrosion resistance.

Drop Forged: The metal is shaped by forging in massive presses while red hot. This method strengthens the internal fiber structure of the metal, ensuring that the wrench retains its form even under the highest torque loads.

Surface Protection: Armored with Chrome plating against rust, moisture, and chemical abrasion. The Matte (Satin) surface texture offers a professional grip that minimizes slipping when working with oily hands.

12-Point Box End: Fully surrounds the nut, distributing the load evenly over the entire surface. This completely prevents the deformation of the nut corners (rounding off).

Areas of Use and Sectors

The 22 mm size is often found in critical mechanical connections. The stubby advantage is life-saving in the following areas:

Automotive and Heavy Vehicles: Connections in the very cramped engine compartments of new generation vehicles, suspension systems, and narrow chassis clearances.

Motorcycle Maintenance: Connection points within the chassis where standard length wrenches do not have sufficient maneuvering angle.

Machine Assembly and Maintenance: Internal components of machines on factory lines, moving parts with narrow enclosures, and complex gearboxes.

Energy and Plumbing: Narrow valve groups, pump room connections, and hydraulic systems.

Aviation: In-aircraft body assembly operations where space is at a premium and access is difficult.

Key Advantages for the User

Extra Maneuvering Space: Allows you to continue turning the nut in tight corners where a standard 22 mm wrench would hit due to its length, thanks to its short body.

Precise Torque Control: The short body length allows the user to better feel the applied force, reducing the risk of snapping bolts due to overtightening.

Lightweight and Compact: Takes up very little space in tool bags and its lightness prevents wrist fatigue during long working periods.

Dual Function: Provides quick grip with the open end and secure, non-slip tightening with the box end.

Technical Specification Summary

Feature	Detail
Product Code	0320020022
Jaw Size	22 mm
Type	Combination (Open + Box End) - Stubby
Material	Chrome Vanadium (Cr-V)
Surface Coating	Chrome Plated / Matte Satin
Standards	DIN 3113 / ISO 3320 / ISO 7738
