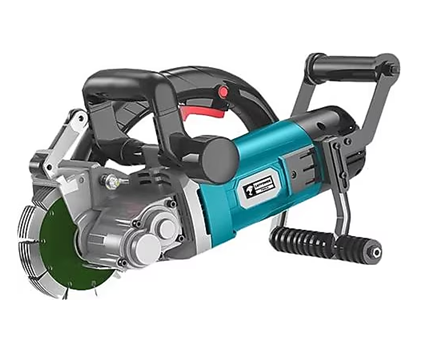

Catpower 9204 Concrete Wall Chaser 46mm 2600 Watt

Catpower 9204 Industrial Concrete Wall Chaser (2600W)

The Catpower 9204 is a high-performance industrial machine designed to speed up wall and floor channeling, one of the most challenging tasks for electricians, plumbers, and natural gas installers. With its massive 2600 Watt motor power, it delivers professional results on tough surfaces like concrete and brick. The Catpower 9204 minimizes breaking and demolition, allowing you to create channels for pipes or cables with millimeter precision and speed.

Technical Specifications and Power Performance

Motor Power: 2600 Watts (Heavy-duty high-torque motor).

Cutting Depth: Maximum 46 mm (Customizable according to pipe diameter thanks to an adjustable depth mechanism).

Channel Width: Ability to cut channels of different widths with adjustable washers.

Soft Start: Prevents the machine from jumping suddenly upon startup, protecting both the motor and user safety.

Dust Extraction: Dust-free operation possible with a vacuum cleaner connection attachment.

Material Structure and Durability

Body: Combination of impact and heat-resistant metal gearbox and high-quality polymer housing.

Blade Group: High-strength diamond segment cutting discs ensure long-lasting cuts in concrete, stone, and brick.

Bearing and Gear System: Dust-sealed bearings prevent concrete dust from damaging the internal components of the machine, extending its service life.

Ergonomics: A two-hand grip design provides full control in both vertical and horizontal cuts.

Areas of Use and Sectors

This machine is ideal for any stage of infrastructure and superstructure construction where "clean workmanship" is required:

Electrical Installation: Creating channels for cables, junction box locations, and panel entries in concrete/brick walls.

Plumbing and Heating: Preparing channels for clean and dirty water pipes and underfloor heating systems.

Natural Gas Installation: Fast channel cutting in cases where steel pipes need to be embedded within walls.

Construction and Restoration: Creating installation pathways in old buildings by cutting rather than breaking concrete.

Critical Information and Tips for Users

Vacuum Use: Concrete dust is extremely abrasive and harmful to health. It is strongly recommended to use the device with an industrial-grade vacuum cleaner. This extends motor life and clarifies your field of view.

Cutting Direction: Paying attention to the arrow on the device, advancing the machine using its own weight and power without forcing it will yield the smoothest channel results.

Blade Cooling: When cutting very hard concrete, allowing the blades to cool by running the machine idle at intervals prevents the diamond tips from dulling.

Why Catpower 9204?

Traditional breaking methods with a hammer drill carry a high risk of damaging surrounding structures and generate a lot of debris. Channels opened with the Catpower 9204 are neatly lined, which means less plaster and material are needed during channel closing.
