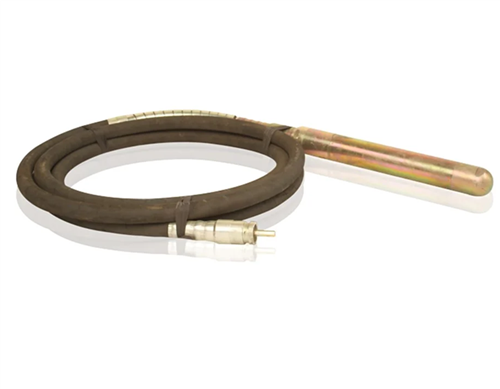

Catpower 702, with its compact structure and high impact force, is a professional concrete vibrator hose with a length of 5 meters and a bottle diameter of 45 mm, preferred especially in medium-sized projects and areas where maneuverability is limited. Its lighter weight compared to 6-meter models provides less fatigue and more control for the operator. The Catpower 702 is a high-frequency compaction equipment designed to ensure the structural integrity of concrete, prevent air voids (segregation) within it, and achieve a smooth surface.
Technical Specifications and Capacity
Hose Length: 5 Meters (Thanks to its lightness, it offers high maneuverability for inter-floor transport and in confined spaces).
Bottle Diameter: 45 mm (Offers a wide radius of effect, enabling rapid compaction of large volumes of concrete).
Vibration Frequency: When paired with high-speed motors, it is powerful enough to bring even the smallest air bubbles within the concrete to the surface.
Connection Structure: Standard universal claw system; 100% compatible with Catpower motors and other standard mechanical vibrator motors.
Material and Durability Features
Reinforced Bottle Tip: The 45 mm head is made of high-carbon hardened steel to resist the abrasive effects of concrete.
Flexible Outer Hose: The outer layer is made of high-quality rubber reinforced with steel braiding, resistant to friction from rebar or concrete chemicals.
High-Torque Inner Shaft: The inner steel cable, which transmits motor power to the bottle, has a flexible and break-resistant structure to withstand sudden starts and high revolutions.
Areas of Use and Sectors
This model is particularly used in the following areas where long hoses are cumbersome and more impact force is desired:
Floor Slabs and Decks: The 5-meter length is ideal for the operator to cover large areas with the motor carried on their back or side.
Stair and Beam Castings: In places with complex mold structures, a 5-meter hose is much easier to maneuver.
Prefabricated and Concrete Element Production: Provides fast and effective compaction in mold factories for casting precast structural elements.
Garden Walls and Small Foundations: Villa-type housing constructions or landscaping projects.
User Experience: Why 5 Meters / 45 mm?
High Efficiency: A 45 mm bottle can quickly compact an area of approximately 50-60 cm in diameter with a single immersion.
Operator Comfort: It is much lighter compared to 5-meter hoses, which reduces back and arm fatigue during prolonged work.
Ease of Transport: Takes up minimal space in small vehicles or during intra-site transfers.
Maintenance and Long-Life Usage Guide
To keep the device at its peak performance, the following steps should be observed:
Lubrication Schedule: The inner shaft (cable) should be removed and lubricated with a quality grease every 50-100 operating hours.
Cooling Allowance: The bottle should not be operated for extended periods when out of the concrete. Concrete acts as a coolant for the bearings inside the bottle.
Vertical Immersion: For best results, the bottle should be immersed into the concrete as vertically as possible and slowly withdrawn.
Hose Cleaning: Dried concrete on the hose after work reduces the hose's flexibility for subsequent use; it must be washed with water.
The Catpower 702 (45 mm / 5 Mt) vibrator hose is the first choice for professionals, especially in medium-scale concrete jobs where time and maneuverability are crucial.
