Catpower 693 Pressure Control Switch Hydromat

Catpower 693 Pressure Control Switch (Hydrophore):

Automatic Water Pump Management

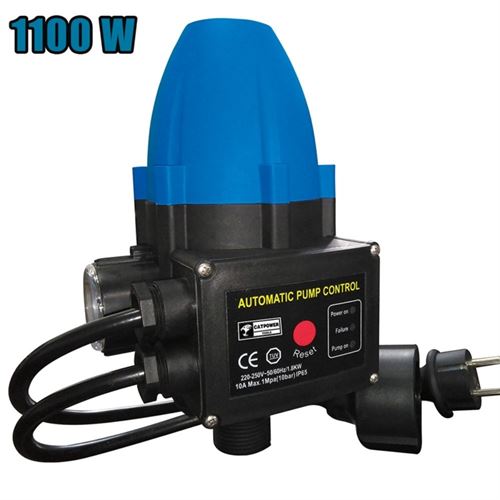

The Catpower 693 Pressure Control Switch, also known as a Hydrophore in the market, is an electronic device that automatically starts and stops water pumps. Unlike traditional expansion tank (hydrophore) systems, this system continuously monitors water pressure and flow, activating the pump as soon as a tap is opened and stopping it when the tap is closed. This feature provides a compact pressurization solution that ensures an uninterrupted water supply.

Key Technical Specifications and Operating Principle

The Catpower 693 has intelligent control mechanisms that ensure efficient and safe pump operation:

Feature	Detail	User Benefit
Function	Pressure and Flow Control	Instantly activates the pump during consumption and stops it when consumption ceases; provides constant, stable pressure.
Voltage/Power	220V / Specific Maximum Motor Power (e.g., 1.5 HP or 2.2 kW)	Compatibility with standard domestic and commercial pumps (submersible, centrifugal).
Maximum Pressure	High-Pressure Resistance (e.g., 10 Bar)	Can be safely used in high-pressure pump systems.
Protection	Dry Run Protection	Automatically stops the pump when the water supply is cut off or runs out, preventing motor burnout.
Connection Diameter	Standard (e.g., 1 inch)	Easy installation with pumps and plumbing systems.
Pressure Setting	Adjustable Starting Pressure (Typically Available)	Ability to set the minimum pressure level at which the pump will activate.
Indicator	Pressure Gauge and LED Lights	Easy monitoring of system pressure and pump status (Running/Error/Ready).

Material Feature: Durability and Safety

Housing: Made of water-resistant, high-strength plastic or composite materials.

Electronic Board: Equipped with a durable PCB (Printed Circuit Board) protected against moisture and water.

Valve and Seals: High-pressure resistant, leak-proof rubber and metal parts.

Application Areas and Industries Used

Hydrophores are used in places that require automatic pressurized water and seek a more compact and modern solution than traditional expansion tank systems.

Application Areas:

Water Pressurization: Increasing water pressure from the mains or a tank in homes, villas, apartments, and small commercial businesses.

Tank Supply: Automatically supplying water from a water tank or cistern to the plumbing system under pressure.

Irrigation Systems: Automatic control of pumps in small-scale garden and agricultural irrigation systems.

Well and Cistern Pumps: Starting and stopping submersible or surface pumps according to water consumption.

Industries Used:

Residential and Building Management (Modernization of hydrophore systems)

Plumbing and Mechanical Installations

Agriculture and Horticulture (Pressurized irrigation)

Small Industry and Workshops (Meeting water needs)

User Information and Who Should Choose It?

The Catpower 693 Hydrophore appeals to users looking for constant pressure, a compact system, and dry run safety.

Plumbers and Pump Installation Specialists: Those who want to offer their customers a modern solution that does not require a tank, takes up little space, and is protected against dry running.

Homeowners and Villa Owners: Those who want to solve low water pressure problems and seek a continuous and stable pressurized water flow.

Tank Users: Those who want to prevent pump damage when the water runs out while drawing water from their tanks.

Important Installation and Usage Tips:

Mounting Direction: The hydrophore must be mounted on the pump outlet and in accordance with the flow direction.

Pressure Selection: Ensure that the pump flow rate does not exceed the maximum flow rate and pressure capacity of the device.

Dry Run Test: After installation, it is recommended to perform a test to ensure that the dry run protection is working correctly.
