Catpower 640 Submersible Pump with Sewage Cutter 2 HP

Catpower 640 Macerator Submersible Pump:

A Professional Solution for Demanding Drainage Tasks

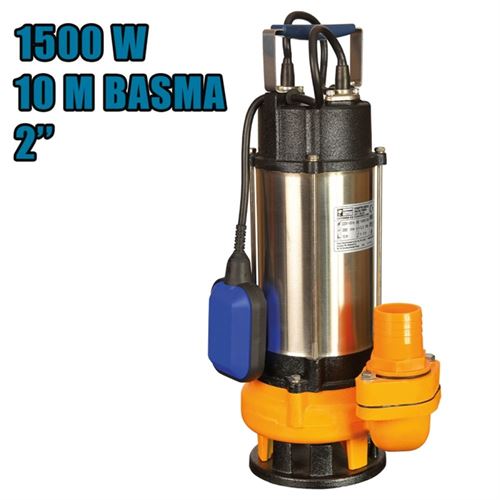

The Catpower 640 is a high-performance macerator submersible pump with 2 HP (1500 Watt) power, specifically designed for draining liquids containing dense solid waste. Thanks to its powerful macerator blade system, it eliminates the risk of clogging, offering reliable use in the most challenging drainage and wastewater management processes.

Technical Specifications and Performance Data

The Catpower 640 is equipped with components that provide industrial-standard performance:

Motor Power: 2 HP (1500 Watt) high-torque motor.

Maximum Flow Rate: Water transfer capacity of 20 - 24 tons per hour (20,000 - 24,000 L/hour).

Head (Max Discharge Height): Can pump water vertically up to a height of 10-15 meters.

Pipe Outlet Diameter: 2 inches (50 mm) wide outlet.

Cable Length: Durable power cable ranging from 10 to 12 meters depending on the usage area.

Control Mechanism: A float switch system that automatically stops and starts the pump based on water level.

Material Structure and Durability Features

The selection of materials for the device ensures its long-lasting operation in aggressive and corrosive wastewater environments:

Cast Iron Body: The upper and lower parts of the pump are made from heavy-duty cast iron. This structure ensures that the device remains stable and durable underwater.

Macerator Blade System: High-hardness macerator blades located at the pump inlet break down solid materials such as textile waste, paper, and soft plastics into small pieces, preventing pump clogging.

Metal Impeller: Wear-resistant metal (typically cast iron) impeller structure.

Sealing: High-quality mechanical seal system that prevents water from entering the motor.

Areas of Use and Sectors

The Catpower 640, with its versatile macerating capability, plays a critical role in many sectors:

Construction Industry: Draining muddy and waste-laden water accumulated on construction sites.

Municipalities and Infrastructure: Emptying manholes and septic tanks, draining floodwaters.

Agriculture and Livestock: Transferring liquid manure and wastewater from animal shelters.

Industrial Facilities: Transferring fibrous and solid waste-containing liquids in factory wastewater treatment plants.

Residential Buildings and Complexes: In apartment septic tanks and basement flooding situations.

User Information and Operational Recommendations

Do Not Run Dry: The pump must always be operated while submerged in water. The float switch setting should be optimized so that the pump stops when the water runs out.

Periodic Cleaning: Very hard metal or stone fragments that may accumulate in the macerator blade area should be checked periodically.

Securing: The pump should not be buried in the mud at the bottom of the pit; placing it on a solid surface or suspending it will improve its performance.
