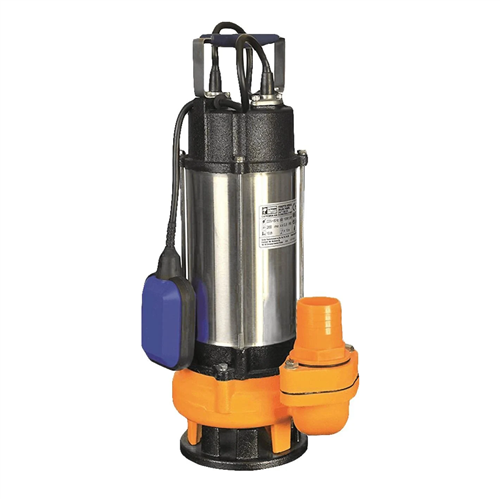

Catpower 620 Submersible Pump with Grinder for Septic Tanks 1.5 HP
The Catpower 620 is a professional 1.5 HP submersible pump with a grinder blade system, specifically designed for transferring dirty water containing solid particles and fibrous waste that is difficult to drain. It operates with a minimized risk of clogging in the most demanding tasks, from severe floods to emptying septic tanks.
Here is a comprehensive review of this powerful device's technical details, areas of use, and material quality:
Technical Performance and User Information
The most distinctive feature of the Catpower 620 is its special alloy grinder blade mechanism located at the suction inlet. This mechanism prevents clogging of the pump and discharge pipe by breaking down cloths, bags, paper, or organic solid waste that comes with the water into small pieces.
Motor Power: 1.5 HP (Horsepower) – Thanks to its high torque, it can pump even highly viscous liquids without difficulty.
Grinder System: Hardened steel blades grind solid waste into a fluid state.
Automatic Float: Automatically starts the pump when the water level rises and stops it automatically when the water runs out to prevent motor burnout.
Discharge Head: With its 1.5 HP motor structure, it has the capacity to deliver water over long distances vertically and horizontally.
Areas of Use and Sectors
This pump is used wherever "heavy-duty" requirements exist and standard drainage pumps are insufficient:
Residential Areas: For emptying septic tanks of apartments and housing complexes.
Construction Sector: For draining water accumulated on construction sites, containing mud and waste.
Industrial Facilities: In wastewater treatment units and septic lines of factories.
Animal Husbandry: For transferring liquid manure and cleaning stables on livestock farms (ideal for fibrous waste).
Municipalities and Infrastructure: For water accumulation in underpasses and emergency interventions in sewer lines.
Material Properties and Durability
Constantly in contact with water and corrosive substances, the Catpower 620 is manufactured from the following materials for maximum durability:
Cast Iron Body: The main body of the pump is made of high-strength cast iron. This allows for better heat transfer from the motor to the water for cooling and provides protection against impacts.
Stainless Steel Shaft: The motor shaft is made of corrosion-resistant stainless steel.
Hardened Blades: The shredder blades are made of heat-treated steel alloy to maintain their sharpness for a long time.
Mechanical Seal: High-quality sealing elements are used to prevent water leakage into the motor.
Critical Warnings and Maintenance for Users
To extend the life of your pump and ensure high performance, you should pay attention to the following points:
Caution: Grinder blades are designed for organic waste, cloth, and plastics. Metal pieces, large stones, or hard construction debris getting into the pump can damage the blades.
Do Not Run Dry: Ensure the float moves freely. If the pump runs dry, the mechanical seals can be damaged.
Cleaning: Especially after use in heavily muddy or manure-filled areas, running the pump briefly in a bucket of clean water to clear residues will extend blade life.
Cable Safety: Never lower or raise the pump by holding its electrical cable. Use a rope attached to the handle on the body for this operation.
Why Choose Catpower 620?
Advantage
Result
1.5 HP Motor
Water drainage from deep pits and over long distances.
Grinder Blade
Ends plumbing clogs, reduces costs.
Cast Iron Structure
Long service life in heavy-duty use.
Float System
Automatic operation without needing constant supervision.
