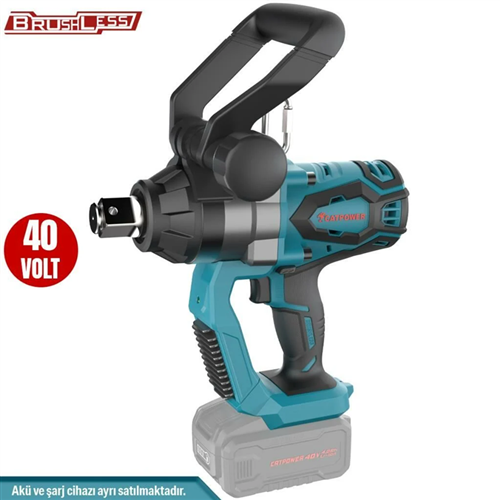

Catpower 4429 Brushless Cordless Impact Wrench 1'' Solo (Battery Not Included) Pack

Catpower 4429 Professional Brushless Cordless Impact Wrench 1’’ Solo (Battery Not Included) Pack

Representing the pinnacle of cordless power tool technology, this is an industrial powerhouse with immense torque. Exceeding the capabilities of standard impact wrenches and rivaling pneumatic systems, this machine is designed for the heaviest duty jobs with its massive 1-inch drive anvil.

Being a Solo pack, it offers a cost-effective solution for professionals who already own the Catpower 20V battery ecosystem.

Technical Specifications and Capacity

The Catpower 4429 boasts technical specifications developed for extreme conditions:

Motor Type: Next Generation High Torque Brushless Motor.

Maximum Loosening Torque: Approximately 2200 - 2500 Nm (Highest loosening torque updated according to model year).

Anvil Size: 1'' (One Inch) Square Drive (For the largest industrial sockets).

Voltage: 20V (Compatible with high-current Catpower Li-Ion batteries).

Speed and Torque Adjustment: 3-stage electronic control panel.

Impact Rate: High-frequency impact feature for definitive results on rusted or seized bolts.

Package Contents: Solo (Tool body only; battery and charger not included).

Technological Advantages

1-Inch Industrial Drive

The most distinctive feature that sets this device apart is its 1-inch anvil structure. This structure ensures that torque exceeding 2000 Nm is transferred to the bolt without loss and without the risk of the drive end breaking.

Smart Brushless Motor Management

Brushless motor technology stabilizes RPM even at peak stress. With overheat protection and overload protection, it minimizes the risk of motor burnout and offers a much longer lifespan compared to conventional motors.

Multi-Functional Digital Panel

The user can adjust the tightening and loosening torque via the lower panel. Additionally, the "Soft Start" feature prevents sudden jolts, enhancing user control.

Areas of Use and Sectors

The Catpower 4429 falls into the "Ultra Heavy Duty" class and is a primary piece of equipment in the following sectors:

Construction Machinery and Mining: Track, wheel, and chassis assembly for excavators, loaders, and giant mining trucks.

Port and Shipyard: Maintenance of ship propellers, overhaul of large-tonnage cranes, and maintenance of container carriers.

Oil and Gas Industry: Tightening large-diameter valve and flange connections in pipelines.

Bridge and Viaduct Construction: Assembly of M30 and larger bolts at the connection points of massive steel girders.

Railway Infrastructure: Railway switch changes and maintenance of wagon wheel sets.

Material Features and Durability

Armored Head Structure: Heat-treated special steel alloy front housing to withstand the stress generated by immense torque.

High-Density Casing: Impact-absorbing polymer body structure resistant to oil, grease, and harsh construction site chemicals.

Dual Handle Ergonomics: An additional support handle or improved grip geometry beyond the main handle to counter the reaction force generated by high torque.

Lighting: Wide-angle LED spot optimized for undercarriage and dark work areas.

Important Advice for Users

Battery Selection: To provide the immense power required by this device, it is strongly recommended to use 6.0Ah or 8.0Ah high-amperage batteries. Low-amperage batteries (like 2.0Ah) will prevent the device from reaching its full torque.

Socket Compatibility: Only use 1'' drive, black impact sockets. Standard sockets may shatter under this torque, leading to workplace accidents.
