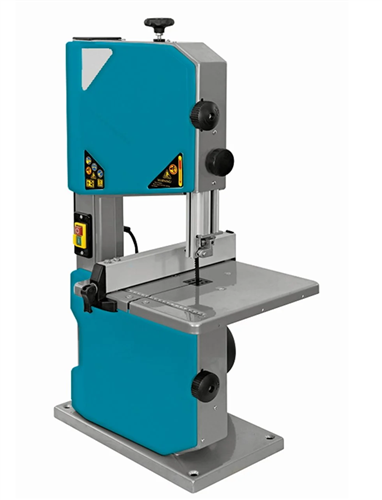

The Catpower 2710 is designed for those who want to take their woodworking artistry a step further. With its 500 Watt motor and increased cutting depth, it can cut not only thin strips but also thick solid pieces and hard wood types with high precision.
Technical Specifications Table
Feature
Detail
Motor Power
500 Watt
Saw Blade Length
1712 mm
Maximum Cutting Height
115 mm
Throat Depth (Width)
245 mm
Table Size
302 x 304 mm
Table Tilt
0° - 45°
Cutting Speed
Approx. 400 - 800 m/min
Material Properties and Design Advantages
The Catpower 2710 is built with durable materials to handle larger workloads:
Greater Cutting Capacity: The 115 mm cutting height allows for resawing thick wood blocks and cutting large curved pieces.
Cast Iron Work Table: The sturdy work table minimizes vibration and offers a smooth sliding surface, capable of precise angled cuts up to 45 degrees.
Advanced Bearing Guides: The bearing support system on both sides of the saw blade prevents blade deflection during cutting, ensuring a straight cut.
Parallel Fence and Miter Gauge: The included aluminum parallel fence allows for serial cuts of consistent width with great ease.
Safety Switch: Features a safe switch design that can be quickly turned off in emergencies and prevents unintended operation.
Areas of Use and Industries
With its 500 Watt power, the Catpower 2710 serves a much wider range of applications:
Furniture and Decoration:
Production of chair legs, curved cabinet doors, and decorative solid wood pieces.
Precise sizing of laminated veneers and solid panels.
Advertising and Signage Industry:
Curved and shaped cuts of materials such as plexiglass, hard plastic, and sign foam (Dekota).
Advanced Hobby and Luthierie (Musical Instrument Making):
Rough cutting of guitar bodies, shaping of necks, and preparation of internal frame parts for acoustic instruments.
Prototype Workshops:
Rapid modeling and production of wood/plastic prototypes in companies engaged in industrial product design.
User Information and Efficient Use Tips
Blade Tension: The tension of the 1712 mm long blades directly affects cutting quality. With the tension lever on the machine, care should be taken to ensure the blade is neither too loose nor too tight to break.
Speed and Feed: When cutting hard woods (oak, walnut), feeding the material slower will prevent motor strain and burn marks.
Dust Extraction: Connecting a dust extraction system to the vacuum port at the back of the machine not only protects your lungs but also prevents the internal wheels from filling with sawdust and becoming unbalanced.
Maintenance: Periodically check the wear of the rubber tires on the wheels and clean resin residues.
Why Catpower 2710?
The Catpower 2710 is a professional transition machine that addresses the "thick cutting" and "long-term operation" needs where 250W models fall short. If you plan to take on larger volume jobs in your workshop, its 115 mm cutting depth offers you great freedom.
